Snapshots & Backfilling

Trigger ad hoc Filtered, Full, Blocking, and Fast Parallel snapshots in Streamkap to backfill historical data from your source databases.

Streamkap Sources use snapshots to backfill historical data from your source tables.

Snapshot Options

When triggering a snapshot, you can choose from three options:

Filtered Snapshot

Apply filter conditions to capture specific rows. Streaming continues during snapshot.

• Best for capturing a subset of data based on conditions (e.g., date ranges, specific statuses)
• Uses incremental watermarking to capture data in small chunks
• Requires tables to have primary keys (or a Surrogate Key)
• Can continue from where it left off on failure or cancellation

The filter syntax depends on your Source type — see Filtered Snapshot Configuration below for the exact format and examples per Source.

Full Snapshot

Capture all rows from selected tables. Streaming continues during snapshot.

• Best for complete data backfills where you need all historical data
• Uses incremental watermarking to capture data in small chunks
• Requires tables to have primary keys (or a Surrogate Key)
• Can continue from where it left off on failure or cancellation

Blocking Snapshot

Capture all rows while pausing streaming. Streaming resumes automatically after snapshot completes.

• Required for keyless tables: Tables without primary keys cannot use incremental snapshots (unless a Surrogate Key is specified)
• Point-in-time consistency: Guarantees a consistent view of data at a specific moment
• Faster for large tables: Can be more performant since it captures all data in one operation
• Multiple tables in parallel: Depending on connector configuration, multiple tables can be snapshotted simultaneously

However, blocking snapshots cannot be resumed on failure or cancellation—they must be re-triggered.

Fast Parallel Snapshot

Backfill large tables and large schemas much faster by reading many rows concurrently, while streaming continues.

• Best for very large tables, keyless tables, and large/regex schemas where Filtered/Full can run for days
• The only option available for regex connectors
• Reads in parallel across multiple tables at once — and can split a single very large table into multiple concurrent readers (applied automatically based on table size)
• No source database locks and no long-running transactions. Data is read in small chunks (a single short SELECT per chunk, sized to ~512 KB), so there is no server-side cursor and no lock held for the duration
• Streaming continues throughout, like Filtered/Full snapshots
• Resumable: continues from where it left off on failure or cancellation, per table
• No primary key required on PostgreSQL — keyless tables are read by physical row location (ctid) without a blocking snapshot. Other dialects chunk differently, see How tables are chunked, per Source
• Supports filters and a Surrogate Key, the same as Filtered and Full snapshots
• Filters are applied per table and pushed into the chunk SELECT, so a filtered Fast Parallel snapshot reads only the matching rows — see Filtering a Fast Parallel snapshot

How tables are chunked, per Source

The snapshot always reads in small chunks; how a table is split into those chunks depends on the Source and on what the table offers. This is chosen automatically — there is nothing to configure — but it determines whether a keyless table can be snapshotted in parallel at all.

Tables that fall into the right-hand column are still snapshotted, still without locks, and still in parallel with other tables — only the split within that one table is not available. Set a Surrogate Key on such a table to get parallel chunking back.

Filtering a Fast Parallel snapshot

A Fast Parallel snapshot can be narrowed on two independent axes: which rows of a table are read, and — for regex Sources — which tables are snapshotted at all.

Both are set in the Snapshot Options dialog when you trigger the snapshot, and both are also available on the API.

Row filter (per table)

Enter a SQL WHERE clause fragment against the table you are snapshotting, exactly as for a Filtered Snapshot. Each selected table gets its own filter — snapshotting orders and customers in one trigger can apply tenant_id = 'acme' to both, or a different condition to each.

The condition is pushed into every chunk SELECT the snapshot issues. It is not a post-read filter: rows that do not match are never read from the Source, never serialized, and never written to Kafka. Filtering a 50-tenant table down to 3 tenants makes the snapshot proportionally cheaper and faster, on the Source and on the pipeline.

The index guidance for Filtered snapshots applies here too — the filter column wants an index, or every chunk degrades into a scan.

Applying one filter across many tables. The filter is per table, and there is no source-wide filter yet, so a multi-tenant backfill means pasting the same condition into each selected table:

1. On the Source (or Pipeline) page, open the Topics table.

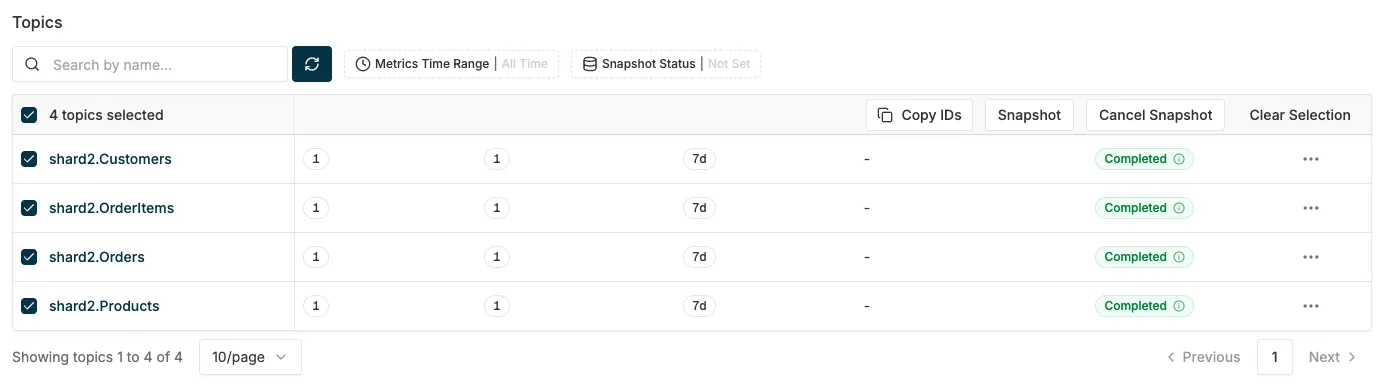

2. Tick the checkbox in the Topic header row to select every table, or tick individual rows.
3. In the bulk-action bar that appears, click Snapshot.

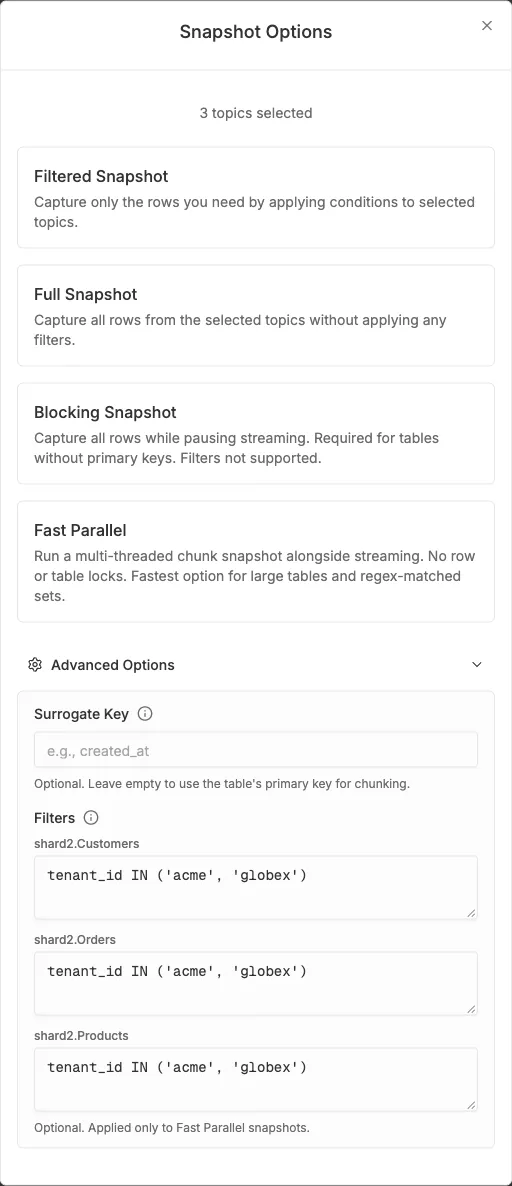

4. Choose Fast Parallel, then expand Advanced Options.
5. Paste the condition into the Filters box for each selected table.

Adding another tenant later. You do not have to re-snapshot everything. Widen the streaming filter first, then run a Fast Parallel snapshot filtered to the new value only — for example tenant_id = 'initech'. The predicate is pushed into the SQL, so the backfill touches only the new tenant’s rows.

Restrict to tables matching (regex)

A regex Source’s pattern may expand to hundreds of physical tables. Restrict to tables matching narrows a single trigger to a subset of that expansion, so you can backfill a few tables without re-snapshotting everything the pattern covers.

The pattern is matched with a search (not a full match) against each expanded table’s fully qualified <database-or-schema>.<table> identifier, so it can narrow by database, by schema, by table name, or by a name suffix — whichever part you write:

Leave it empty to snapshot every table the Source’s pattern matches.

Via the API

POST /sources/execute_parallel_snapshot takes the same three controls:

{
  "source_id": "<source id>",
  "topic_names": ["public.orders", "public.customers"],
  "additional_conditions": [
    { "data_collection": "public.orders", "filter": "tenant_id = 'acme'" },
    { "data_collection": "public.customers", "filter": "tenant_id = 'acme'" }
  ],
  "surrogate_keys": [
    { "data_collection": "public.orders", "surrogate_key": ["created_at", "id"] }
  ],
  "filter_regex": "shard[124]"
}

• additional_conditions — per-table row filter, one entry per table.
• surrogate_keys — per-table chunking column(s). Unlike the source-wide surrogate_key used by Filtered and Full snapshots, this form is per table and composite-capable.
• filter_regex — the restrict-to-regex above, applied across every triggered selector.

Omit topic_names to trigger every table the Source captures. See the REST API reference for the full request schema.

Surrogate Key

A surrogate key allows you to specify an alternative column for the connector to use as the primary key during snapshot chunking. This is useful when:

• Keyless tables: Tables without primary keys can use a surrogate key (e.g., a timestamp or auto-increment column) for incremental snapshots instead of requiring a blocking snapshot
• Performance optimization: A different column may provide better chunking performance (e.g., using created_at instead of a UUID primary key for more efficient range queries)

Limitations:

• Only single-column surrogate keys are supported (composite keys are not available)
• The surrogate key column must exist in the table and contain sortable values

Leave the field empty to use the table’s primary key for chunking (default behavior).

Log Retention Prerequisites

Before triggering a snapshot, ensure your source database retains enough transaction log history to cover the snapshot duration plus a safety buffer. We recommend a minimum of 3 days retention. See the setup guide for your specific source for log retention configuration.

If the log is truncated mid-snapshot, the connector may lose its position and require a full re-snapshot.

Choosing a Snapshot Type

Each snapshot type has different trade-offs for speed, streaming impact, and resumability:

• Filtered and Full snapshots use incremental watermarking, which is slower but allows streaming to continue simultaneously. If a table lacks a primary key, you can specify a Surrogate Key to enable incremental snapshots.
• Blocking snapshots are faster for large tables because they capture all data in one operation, but streaming is paused for the duration.

Factors Affecting Duration

Estimating Snapshot Time

There is no exact formula, but as a general guideline:

• Small tables (under 1 million rows): Typically complete within minutes
• Medium tables (1-100 million rows): May take 30 minutes to several hours
• Large tables (100+ million rows): Can take many hours depending on row width and source performance
• Very large tables (1 TB+): Can take 24 hours to days depending on row width, source database performance, and network latency

Snapshot Lifecycle

Behavior

Filtered & Full Snapshots

These snapshots use incremental watermarking, capturing data in small chunks to minimize database impact. Streaming continues while historical data is being backfilled.

When snapshotting multiple tables, tables are processed sequentially—one at a time. Each table must complete before the next begins.

On failure: The snapshot resumes from where it left off. If it cannot resume automatically, you can re-trigger it at the Connector or Table level once the issue is resolved.

On cancellation: The snapshot stops at its current progress. Streaming continues uninterrupted. You can resume the snapshot later from where it left off.

Blocking Snapshots

These snapshots capture all data in a single transaction. Streaming pauses until the snapshot completes, then resumes automatically. Multiple tables may be processed in parallel depending on connector configuration.

On failure: Streaming resumes immediately. Re-trigger the snapshot once the issue is resolved—it will start from the beginning since blocking snapshots capture all rows in one operation.

On cancellation: Since streaming is paused during blocking snapshots, when you cancel a blocking snapshot, Streamkap restarts the connector to terminate the snapshot immediately. Streaming resumes after the restart.

Triggering a Snapshot

You can trigger an ad-hoc snapshot at the Source level or per Table from the Connector’s page.

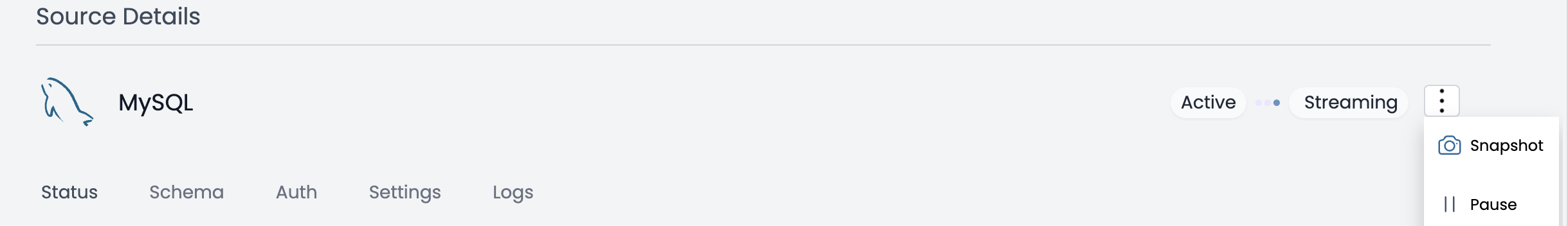

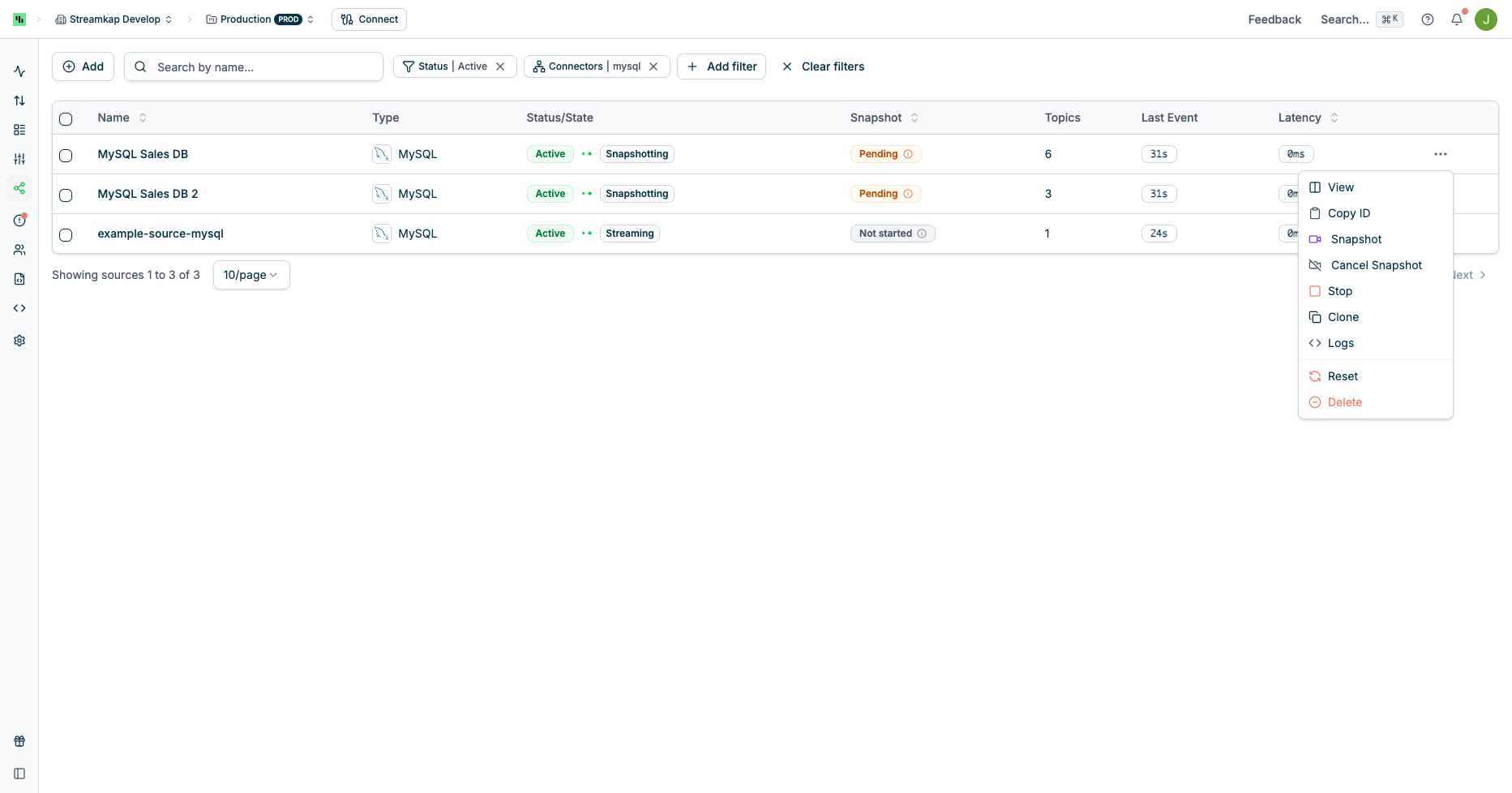

Source Level Snapshot

This will trigger an incremental snapshot for all tables/topics captured by the Source:

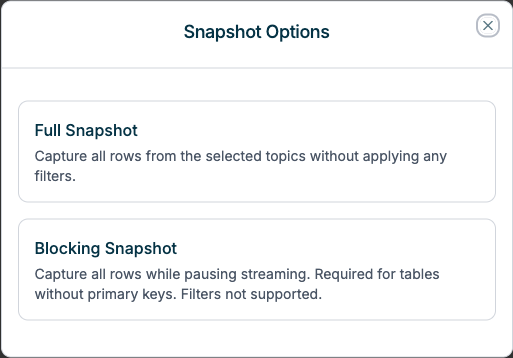

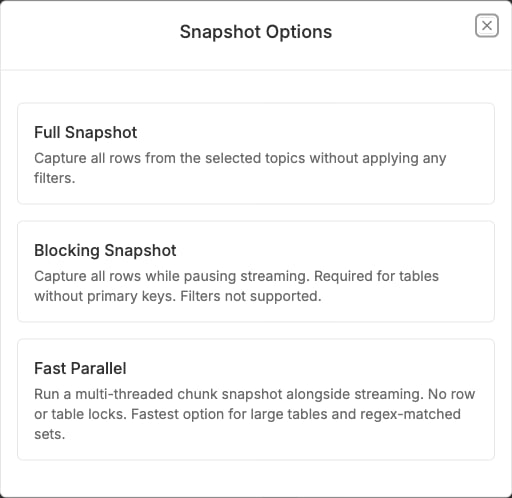

Snapshot Options Dialog

When triggering a source-level snapshot, you can choose between Full Snapshot, Blocking Snapshot, and Fast Parallel:

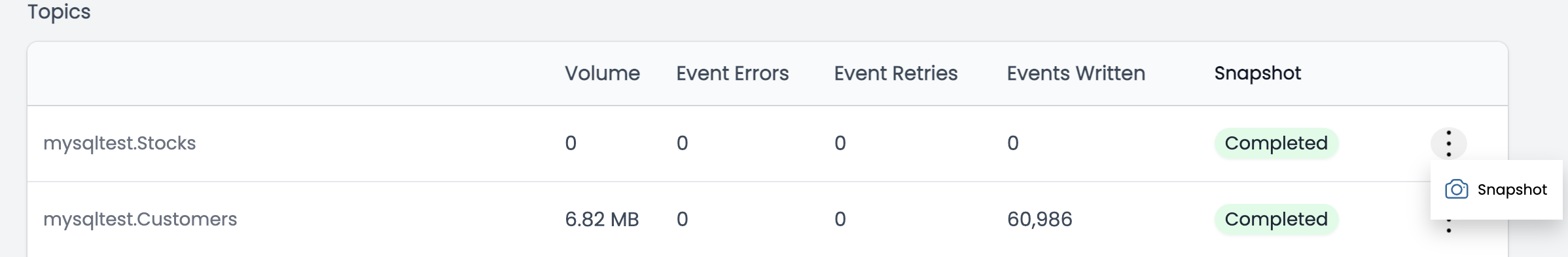

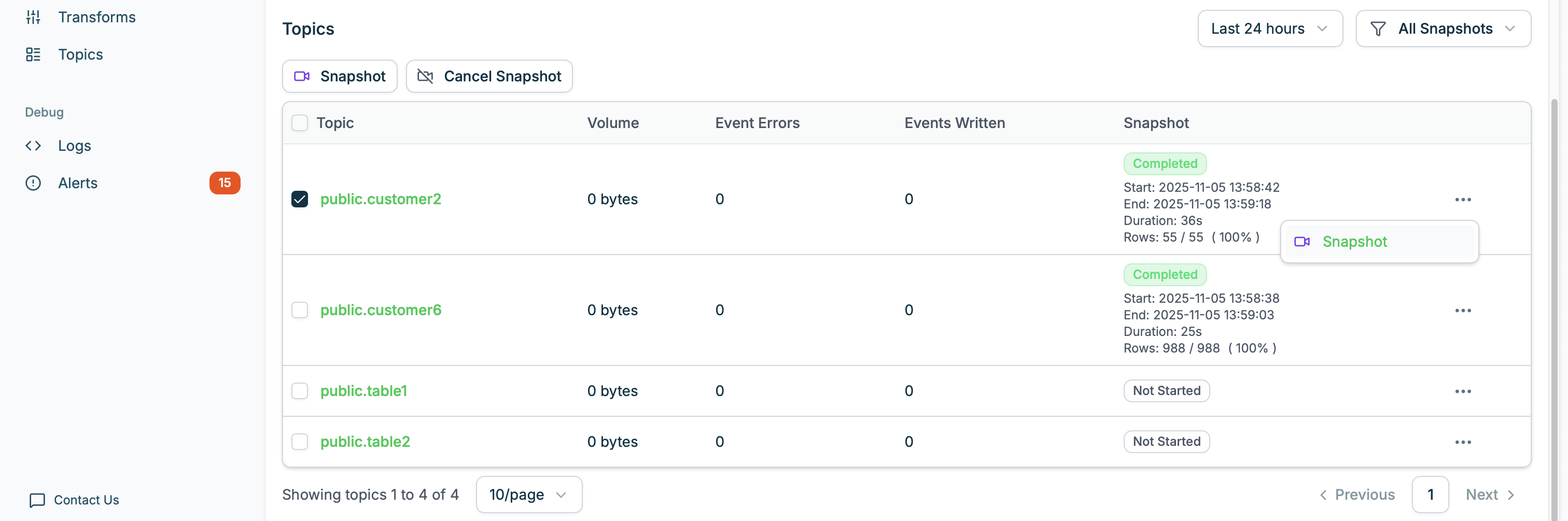

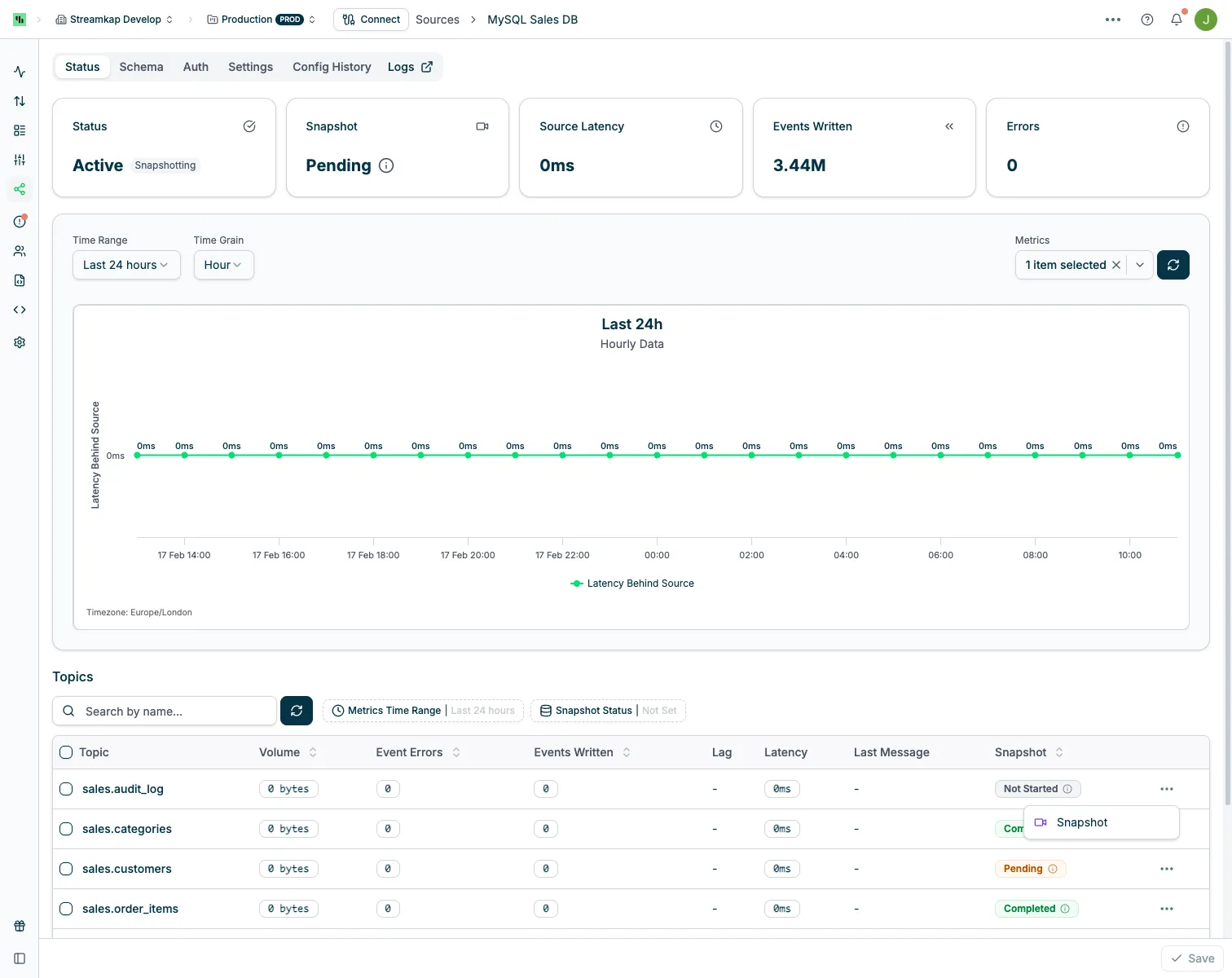

Table/Topic Level Snapshot

This will trigger a snapshot for the selected tables/topics only:

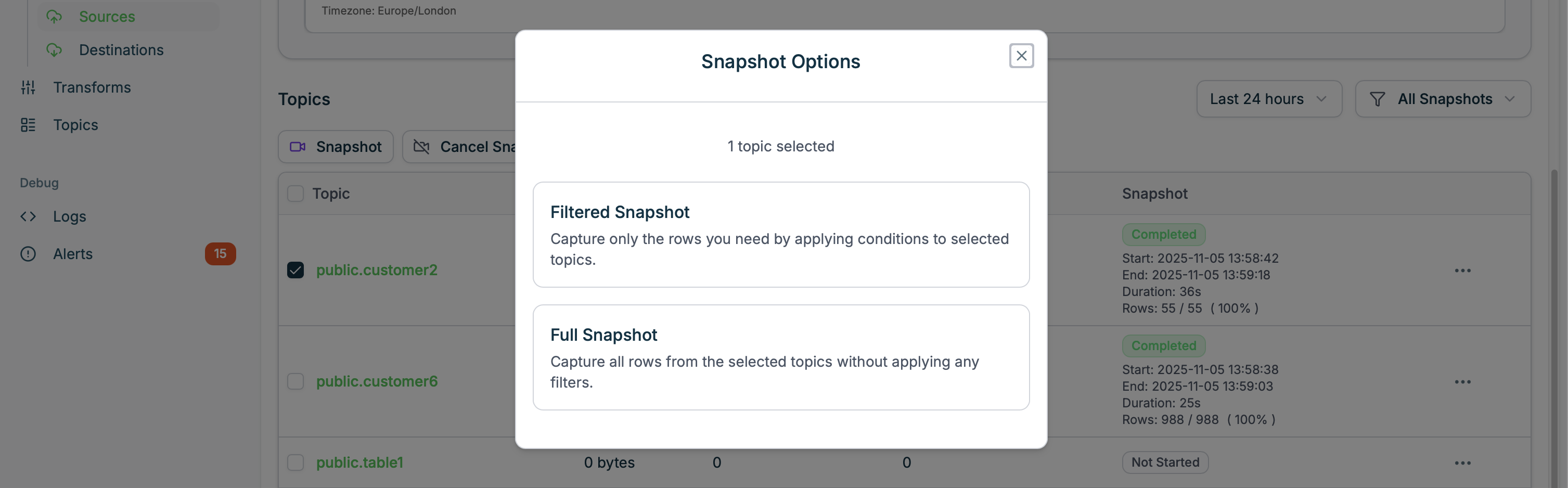

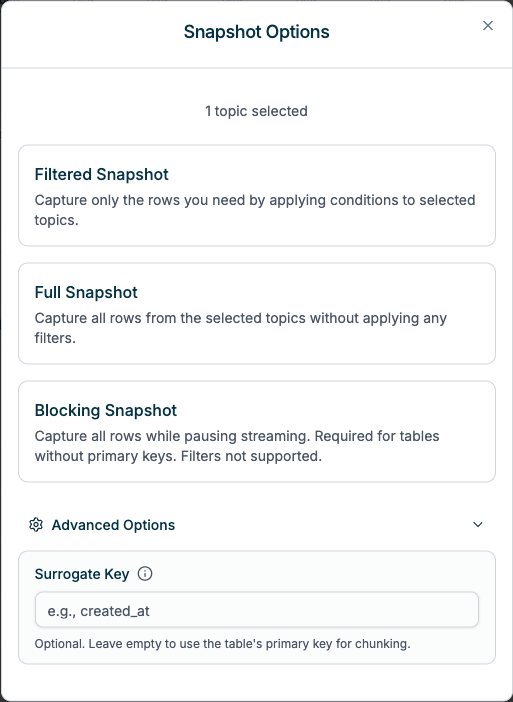

Snapshot Options Dialog

When triggering a table/topic snapshot, you can choose the snapshot type and configure advanced options:

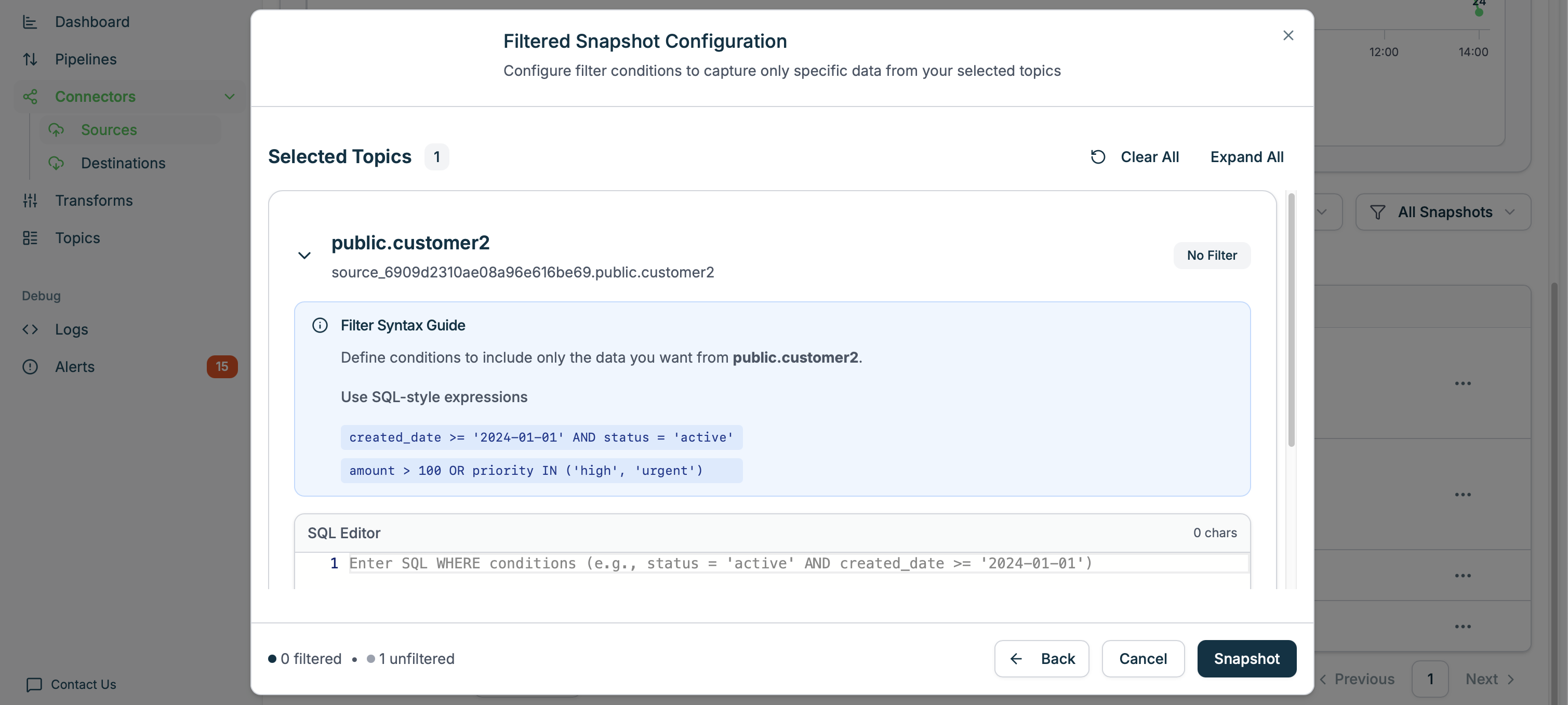

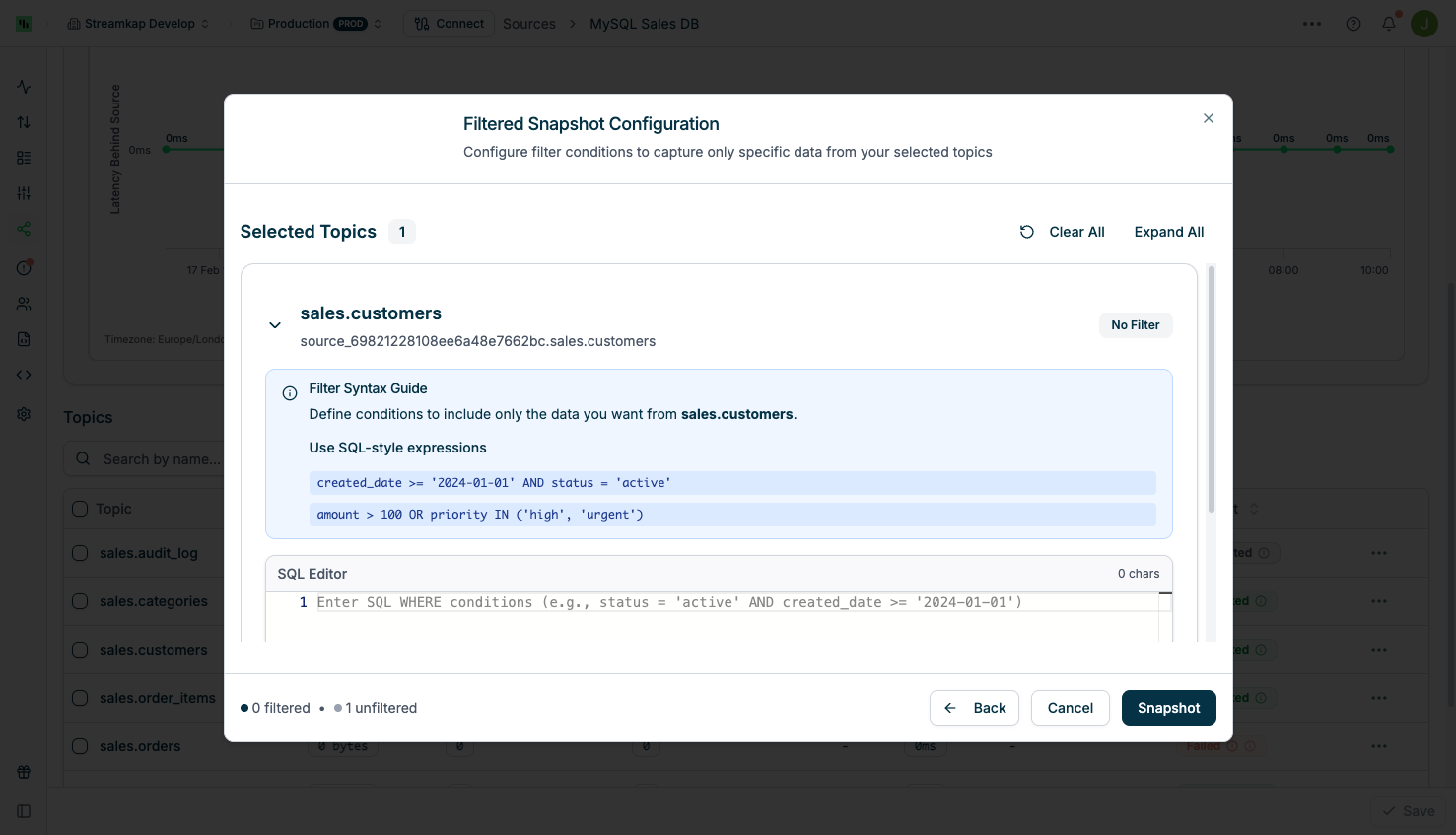

Filtered Snapshot Configuration

Select Filtered Snapshot to apply filter conditions. The filter format depends on your Source type:

MongoDB-family filter examples

MongoDB, MongoDB Hosted, and Amazon DocumentDB filters are parsed as BSON documents — type-specific values like ObjectIds and dates need their MongoDB Extended JSON form, not the literal driver syntax you might write in the shell.

Translating from mongosh / MongoDB Compass. If you’re copying a filter from mongosh, MongoDB Compass, or a driver-side example, it likely uses shell-style constructors (ObjectId(...), ISODate(...), NumberLong(...), etc.). The Streamkap API requires the MongoDB Extended JSON equivalent — translate before submitting:

So a mongosh query like:

db.orders.find({ _id: ObjectId("65a1f2b3c4d5e6f7a8b9c0d1") })

becomes the following Streamkap filter:

{"_id": {"$oid": "65a1f2b3c4d5e6f7a8b9c0d1"}}

Best Practices for Filtered Snapshots

When using Filtered snapshots, we strongly recommend:

• Use closed range filters when applying comparative operators on timestamp or date fields. Closed ranges (lower bound inclusive, upper bound exclusive) ensure you capture all intended data without gaps or overlaps.
  • SQL Source: created_at >= '2025-01-01' AND created_at < '2025-02-01'
  • MongoDB-family Source: {"created_at": {"$gte": {"$date": "2025-01-01T00:00:00Z"}, "$lt": {"$date": "2025-02-01T00:00:00Z"}}}
• Filter on indexed or primary key fields for optimal performance. Filtering on columns that are part of your table’s indices or primary key allows the database to efficiently locate matching rows, significantly reducing the load on your source database.
• Make sure your index covers both the filter column AND the ordering column. When a filtered snapshot starts, it needs to find the highest ordering-column value that matches your filter (MongoDB uses _id; SQL uses the primary key). An index on just the filter column — or just the ordering column — isn’t enough, and the database may end up scanning a large chunk of the table. Check this with your query planner before triggering on a large table.
  • MongoDB-family Source: if you’re filtering on lastupdated, the index you need is { lastupdated: 1, _id: -1 }. Verify with: db.<coll>.find(<filter>).sort({_id: -1}).limit(1).explain("queryPlanner"). The winning plan should show IXSCAN and no SORT stage.
  • SQL Source: if you’re filtering on updated_at with a BIGINT id primary key, the index you need is (updated_at, id). Run EXPLAIN on the filter query and confirm an index scan — not a sequential scan followed by a sort.

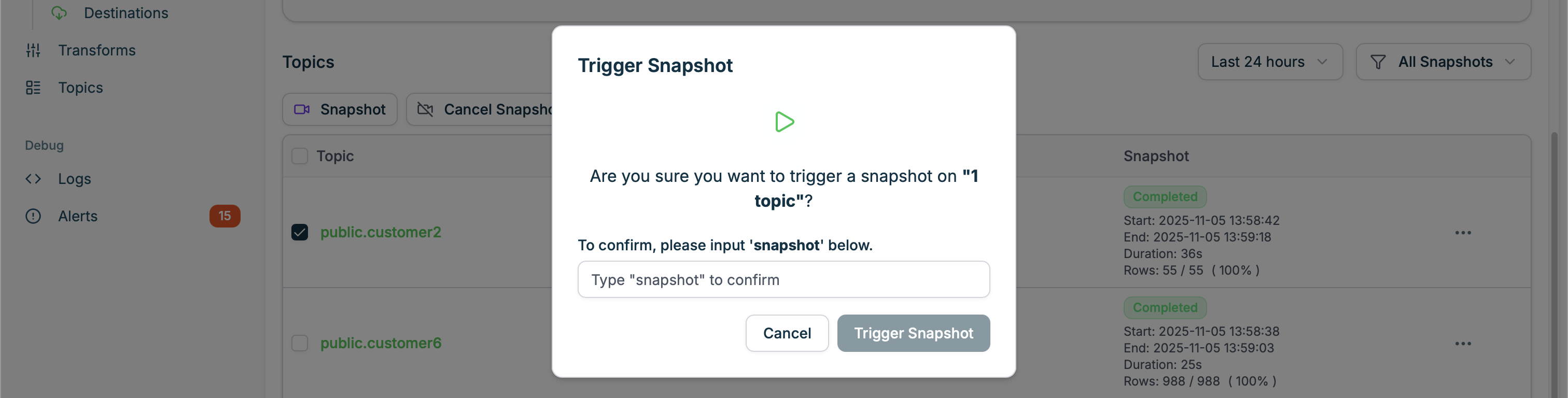

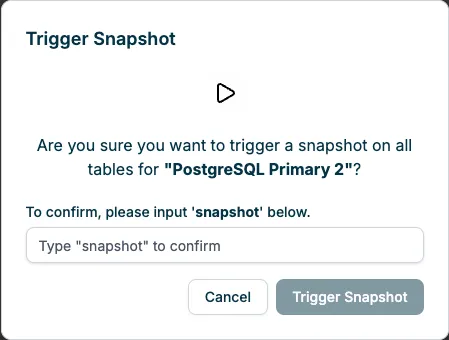

Confirmation Prompt

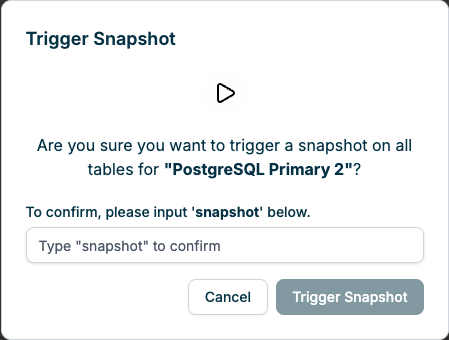

After initiating a snapshot, you must confirm your action by typing “snapshot” in the confirmation dialog:

Snapshot Progress

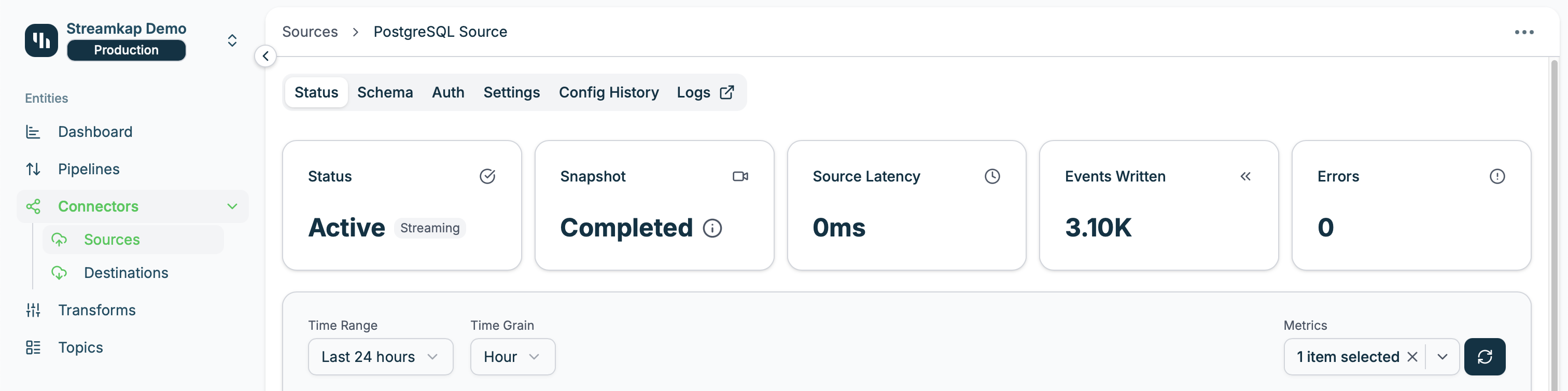

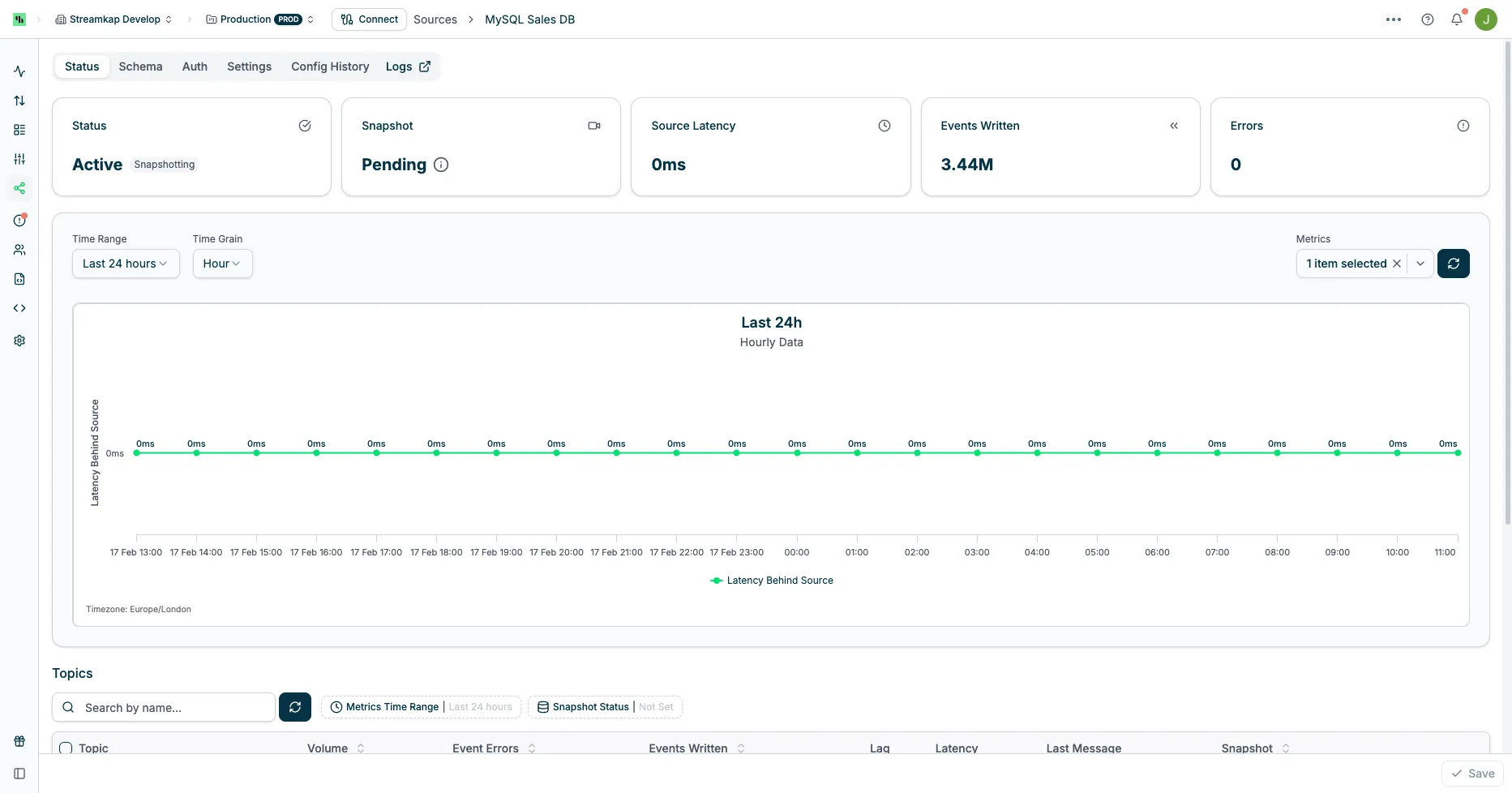

Upon triggering a snapshot, the Connector status will update to reflect the snapshot operation:

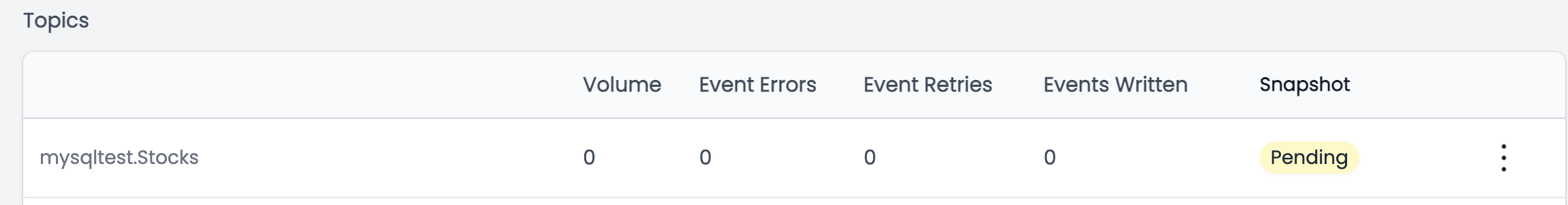

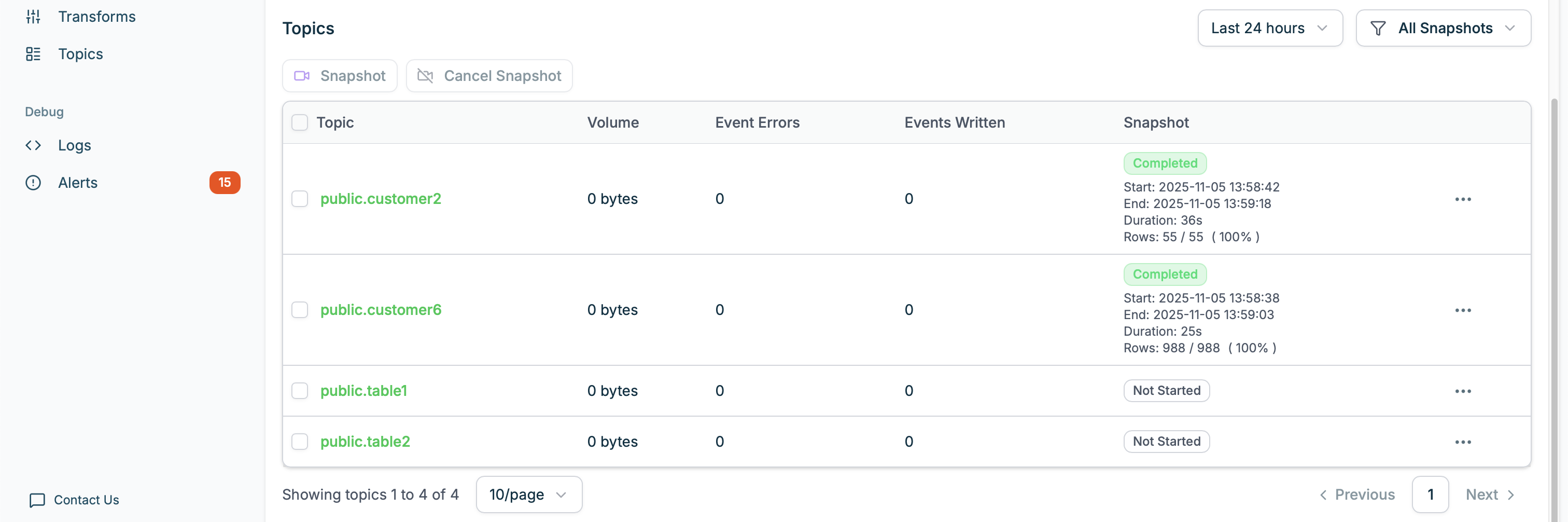

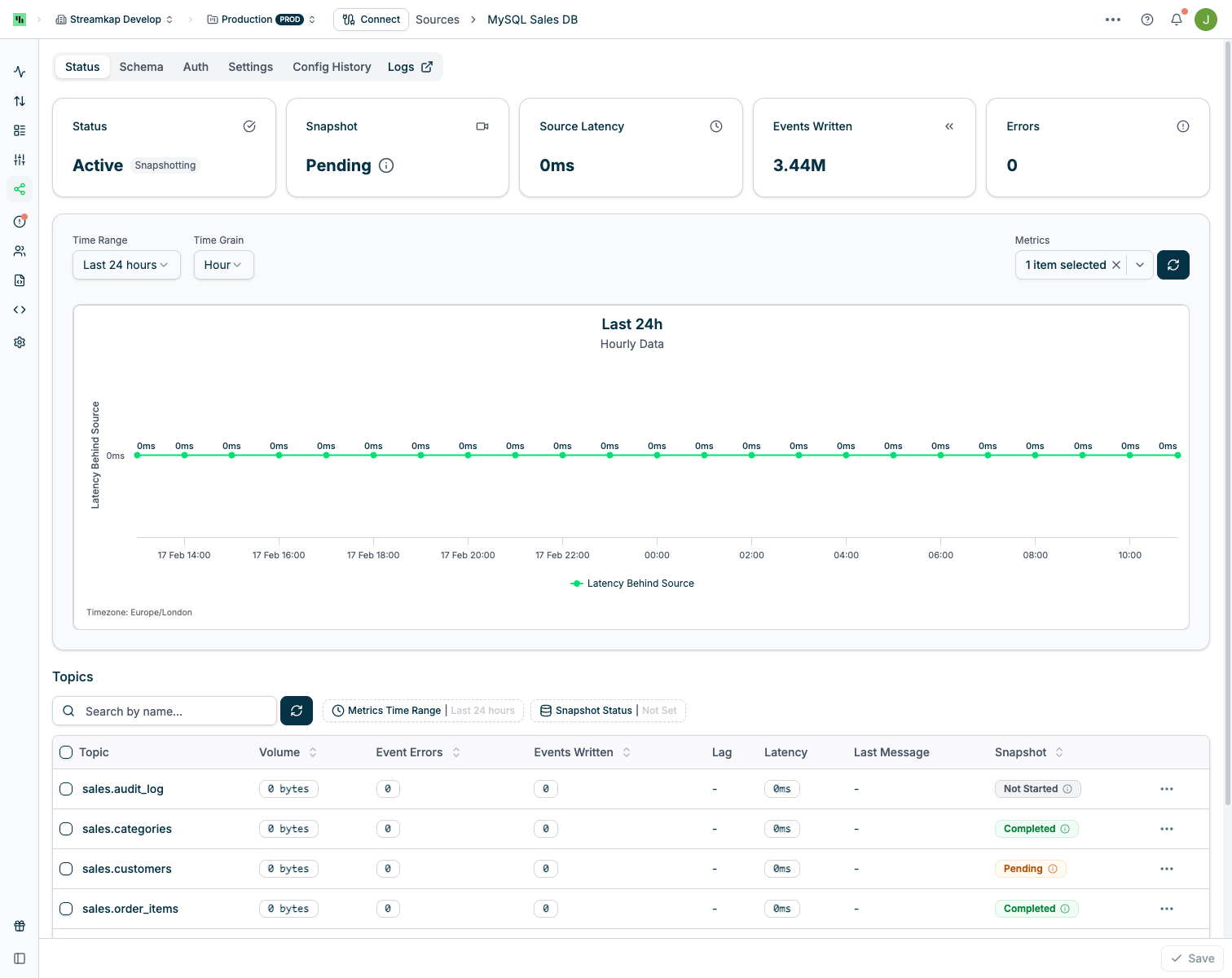

Also, the Topics list will show the snapshot status per table/topic:

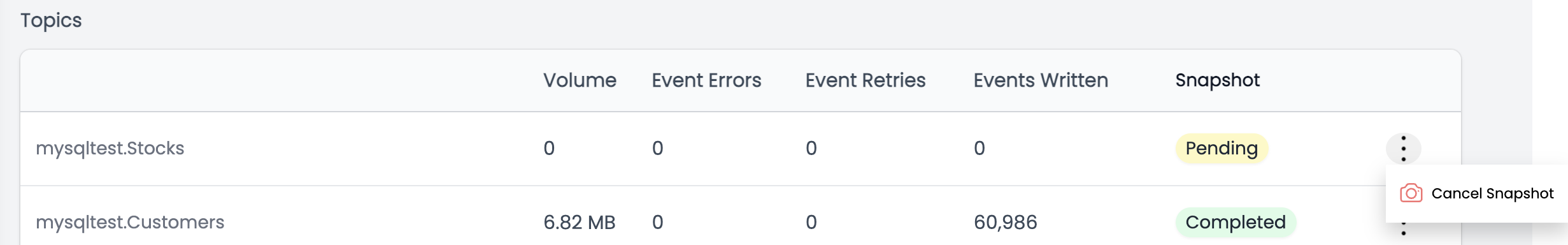

Cancelling a Snapshot

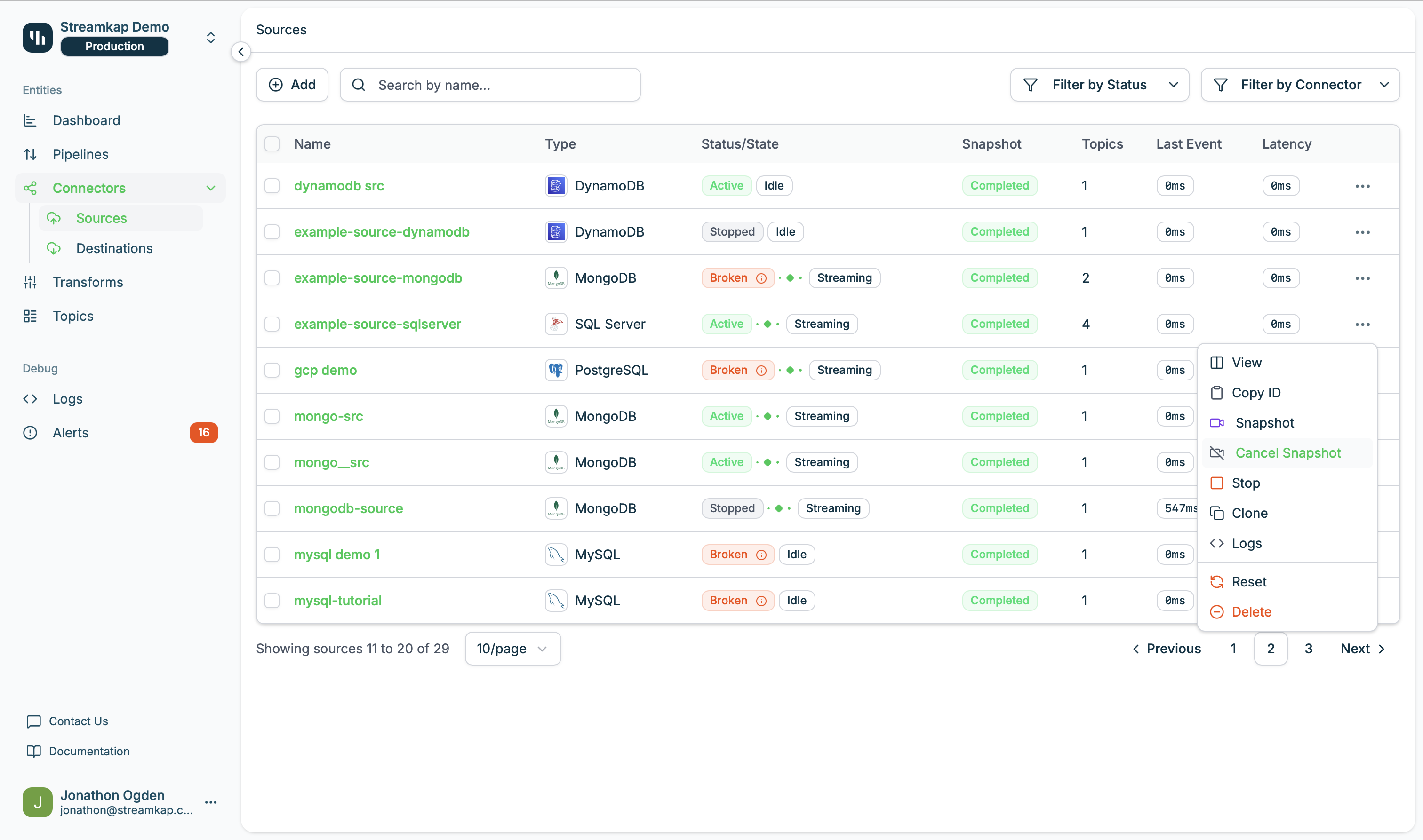

You can cancel an in-progress snapshot from the Connector’s quick actions menu:

Snapshotting After Schema Changes

When your source table schema changes (columns added, removed, or modified), you may need to trigger a new snapshot to ensure your destination reflects the updated structure.

When to Snapshot

Not all schema changes require a snapshot. Use the following guidance:

How to Trigger a Snapshot

You can trigger a snapshot using the same methods as any other snapshot:

1. Via the UI: Navigate to the Source detail page and trigger a snapshot at the Source level (for all tables) or at the individual Table/Topic level. See Triggering a Snapshot above.
2. Via the API: Use the Streamkap API to trigger a snapshot programmatically. This is useful for automating snapshots as part of a schema migration workflow. See the REST API documentation for details.

Best Practices for Schema Change Snapshots

• Wait for the schema change to propagate before triggering a snapshot. Ensure the DDL change has been committed and is visible in the source database’s change log.
• Avoid schema changes during active snapshots. If a snapshot is already running for a table, wait for it to complete (or cancel it) before applying DDL changes. Schema changes during an active snapshot are not supported and may cause failures.
• Use Filtered (Partial) snapshots if you only need to backfill the new column for a specific time range rather than snapshotting the entire table.
• Coordinate with downstream consumers. If your destination enforces strict schemas, ensure the destination table has been updated to accept the new schema before triggering the snapshot.

Troubleshooting

Failed Snapshot Recovery

If a Filtered or Full snapshot fails, it can resume from where it left off once the underlying issue is resolved. If the snapshot cannot automatically resume, re-trigger it — it will continue from the last completed chunk rather than restarting from the beginning.

Blocking snapshots cannot be resumed and must be re-triggered from scratch.

Common causes of snapshot failure include network timeouts, source database overload, insufficient permissions, disk space exhaustion, and schema changes during the snapshot. Check the connector’s Logs for specific error messages, and see the Error Reference for detailed resolution steps.

Verifying Snapshot Completion

After triggering a snapshot, you can verify that it completed successfully and that your destination contains the expected data.

Check Snapshot Status in the UI

The most direct way to confirm completion is through the Streamkap UI. Navigate to your Source’s detail page and check the Status tab:

• Per-topic status: Each table/topic shows its snapshot state (e.g., “Running”, “Completed”). When all topics show “Completed”, the snapshot is finished.
• Connector status: The connector status returns to its normal streaming state after all snapshots complete.

Compare Row Counts

To verify data completeness, compare the row count at the source with the row count at the destination:

1. Source row count: Run a SELECT COUNT(*) (or equivalent) on the source table. For very large tables, an approximate count may be sufficient (e.g., pg_class.reltuples in PostgreSQL or TABLE_ROWS from information_schema.tables in MySQL).
2. Destination row count: Run a SELECT COUNT(*) on the corresponding destination table.

Check Pipeline Lag

Pipeline lag indicates how far behind the destination is from the source. After a snapshot completes:

• Lag drops to near-zero: The pipeline has caught up and is processing events in near real-time. This confirms the snapshot is complete and streaming has resumed normally.
• Lag remains elevated: The pipeline may still be processing buffered events that accumulated during the snapshot. Wait for lag to stabilize before concluding.

You can monitor pipeline lag on the Pipelines page or via the API.

Distinguishing “Stuck” from “Still Running”

If a snapshot appears to be taking longer than expected:

• Check throughput metrics. If records per second is greater than zero, the snapshot is still actively processing data. Large tables simply take longer. You can view throughput on the Pipelines page.
• Check for errors. If throughput has dropped to zero and the status does not show “Completed”, the snapshot may have encountered an error. Check the connector Logs and the Failed Snapshot Recovery section.
• Check source database load. High load on the source can slow snapshot reads significantly. Monitor the source database’s CPU, I/O, and active connections during the snapshot.
