Consumer Groups provide visibility into Kafka consumers that are reading from your topics. The Consumer Groups page allows you to monitor consumer group status, track consumer lag, inspect group members, and manage offset positions.

​
Overview

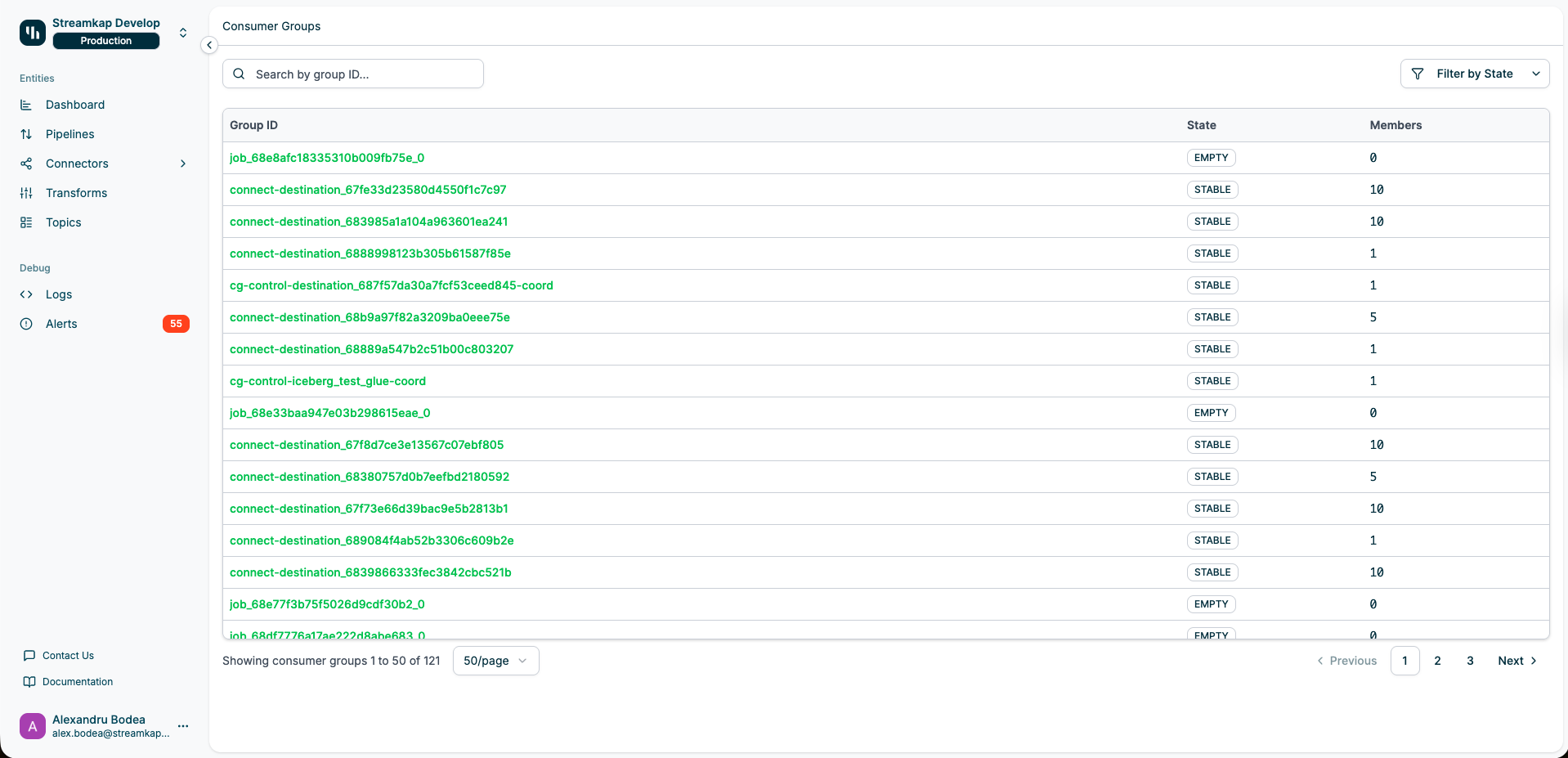

The Consumer Groups page displays all Kafka consumer groups in your service with their current state and membership information:

​
Key Features

  • Search Functionality: Filter consumer groups by group ID using the search bar
  • State Filtering: Filter groups by their current state (STABLE, EMPTY, etc.)
  • Group Overview: View group status, membership count, and assigned partitions
  • Offset Management: Reset consumer offsets for specific topic partitions
  • Member Details: Inspect individual consumer group members and their assignments

​

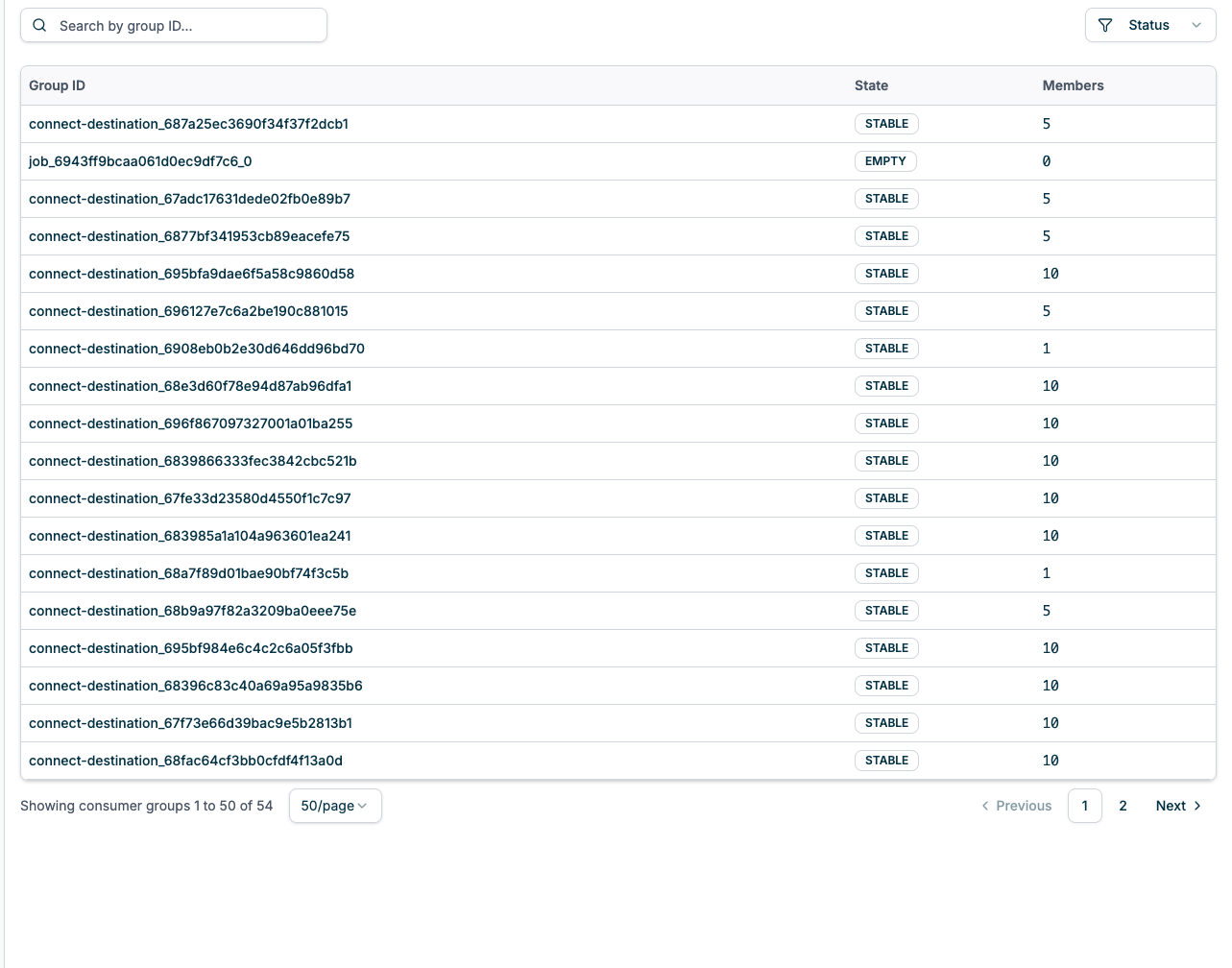

Consumer Groups Table

The main table lists all consumer groups with the following columns:
  • Group ID: The unique identifier for the consumer group
    • Click to navigate to the group detail page
    • Naming patterns typically include connector IDs or job identifiers
  • State: The current state of the consumer group
    • STABLE: Group is active with members consuming messages
    • EMPTY: Group exists but has no active members
  • Members: Number of active consumers in this group
    • Shows 0 for EMPTY groups
    • Indicates the parallelism level for STABLE groups

​
Search and Filtering

  • Search Bar: Filter groups by entering part or all of a group ID
  • State Filter: Use the “Filter by State” dropdown to show only groups in a specific state
  • Pagination: Navigate through groups with configurable page size (10, 20, 50, or 100 per page)

​

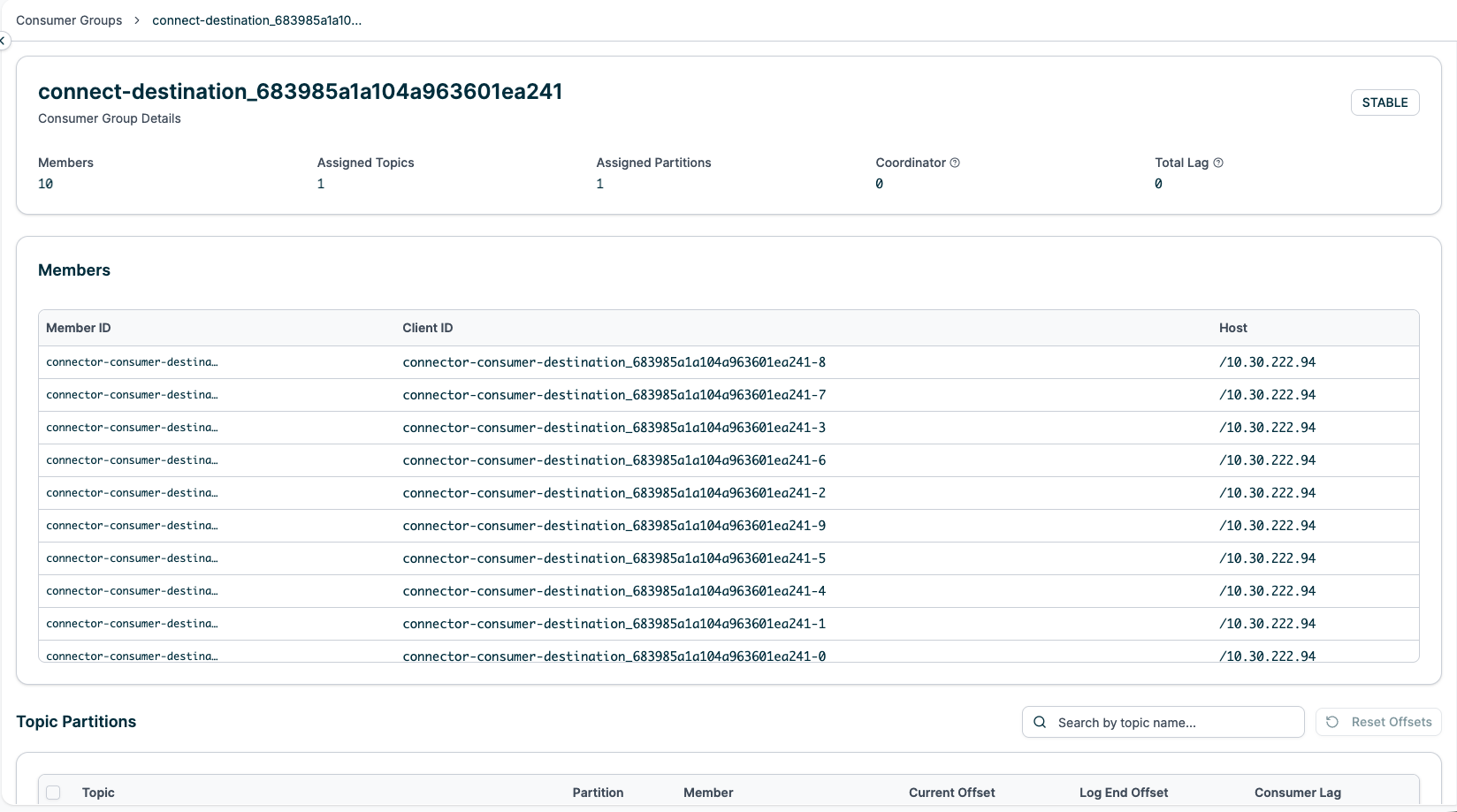

Consumer Group Detail Page

Click any group ID to view detailed information about the consumer group, including members and partition assignments.

​

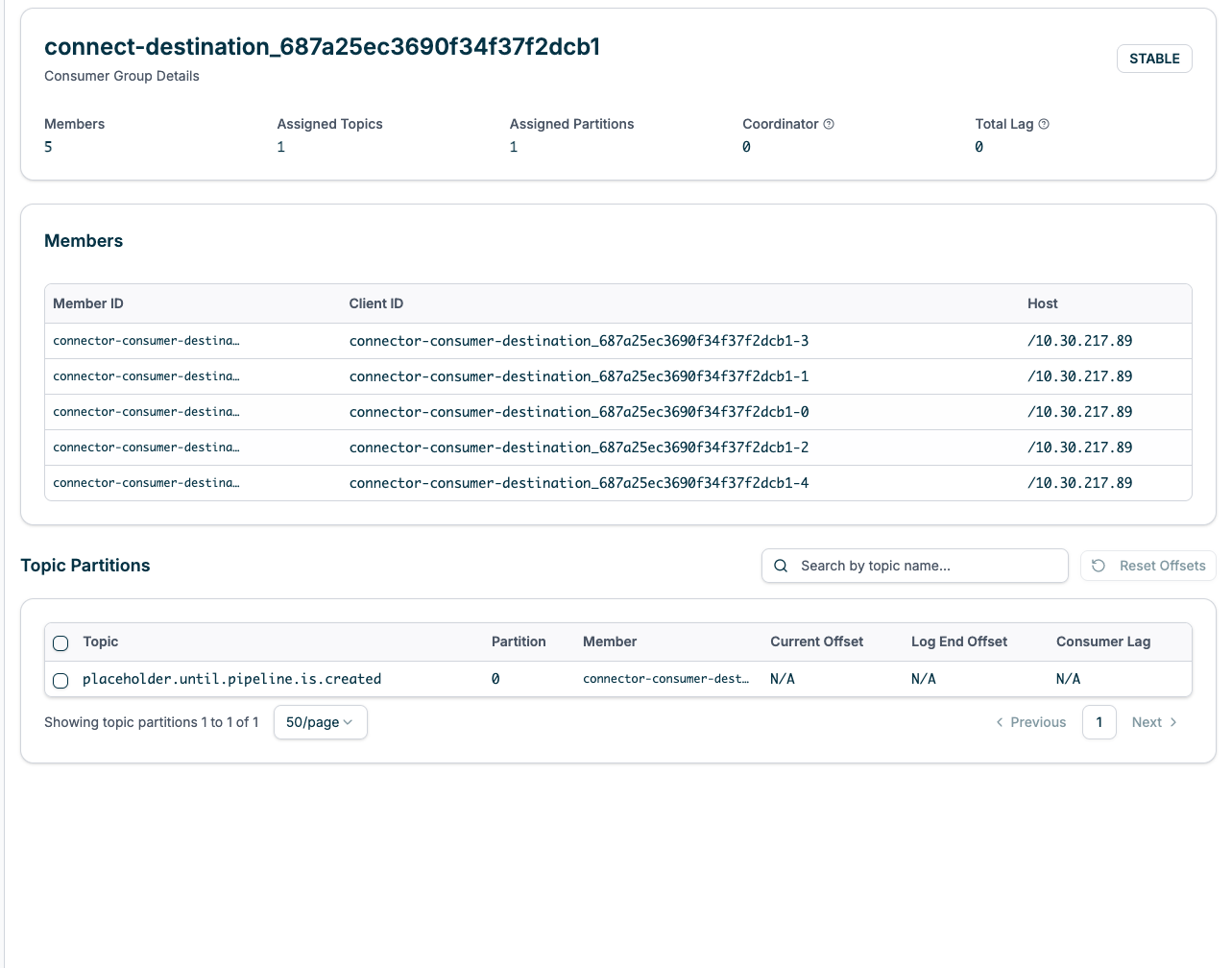

Overview Metrics

The detail page displays key metrics for the selected consumer group:
Metric Cards:
  • Members: Number of active consumers in the group
  • Assigned Topics: Count of topics this group is consuming from
  • Assigned Partitions: Total number of partitions assigned to group members
  • Coordinator: The broker ID acting as the group coordinator
  • Total Lag: Aggregate consumer lag across all assigned partitions
The coordinator is the Kafka broker responsible for managing group membership and partition assignments for this consumer group.

​
Members Table

The Members section lists all active consumers in the group:
  • Member ID: Unique identifier for each consumer instance
    • Format typically includes client ID and a UUID
  • Client ID: The configured client identifier for the consumer
  • Host: IP address of the machine running the consumer
The number of members determines the maximum parallelism for consuming from topics. Each member can be assigned one or more partitions.

​

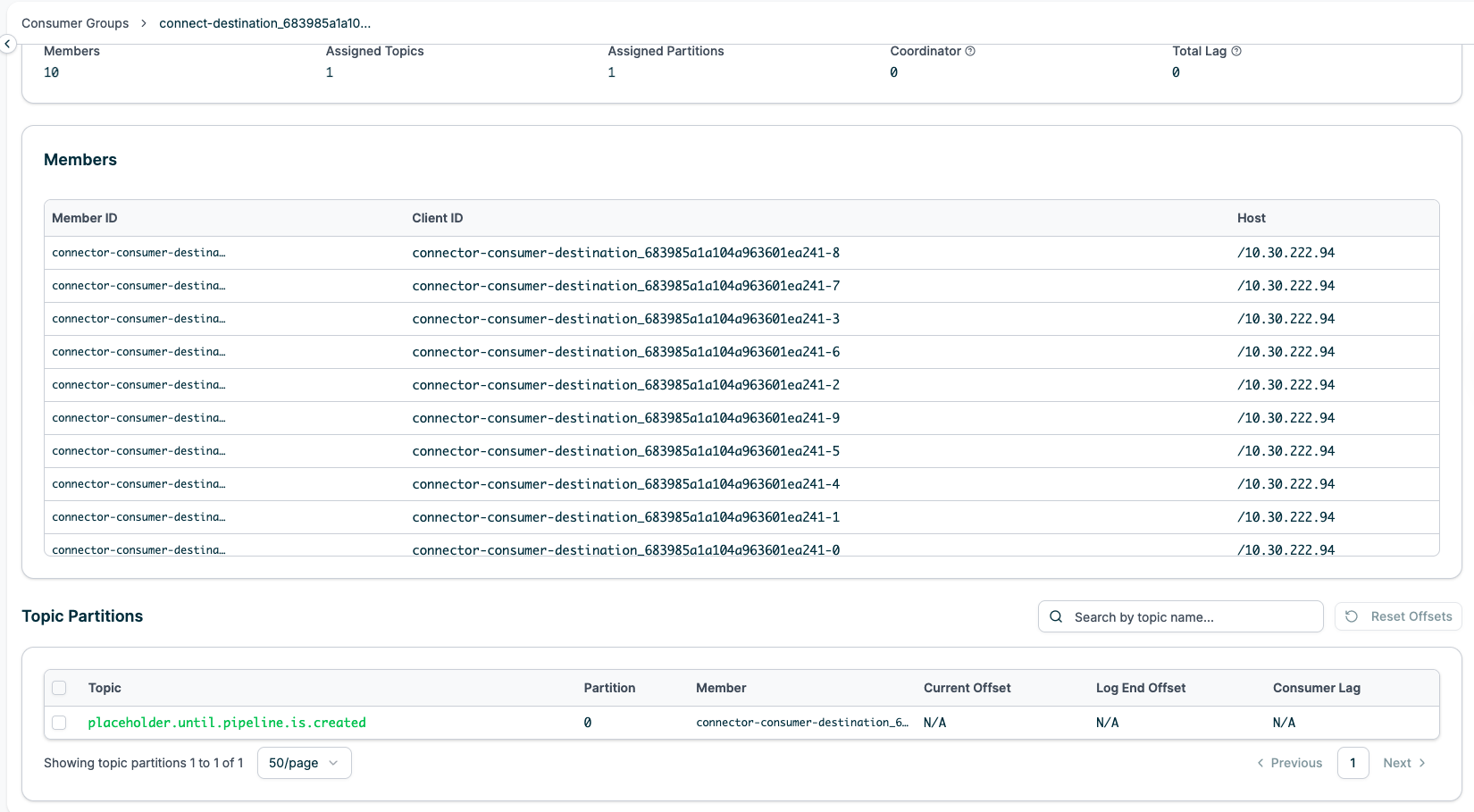

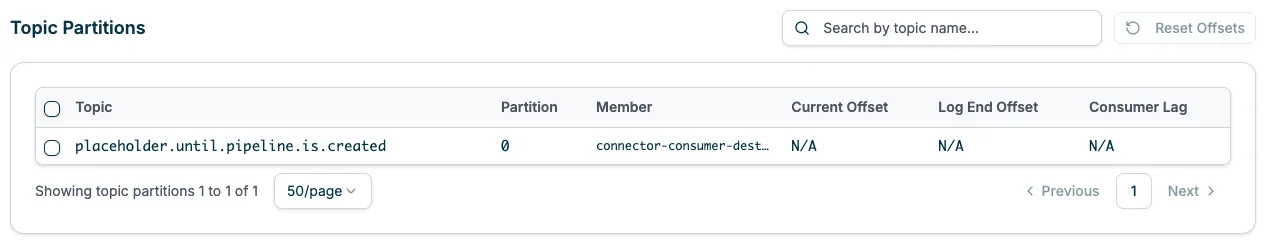

Topic Partitions

The Topic Partitions section shows partition-level details and consumption progress:
Table Columns:
  • Topic: The Kafka topic name
    • Click to navigate to the topic detail page
  • Partition: The partition number within the topic
  • Member: The consumer member ID currently assigned to this partition
  • Current Offset: The last offset consumed by the consumer
  • Log End Offset: The latest available offset in the partition
  • Consumer Lag: The difference between log end offset and current offset
    • Higher values indicate the consumer is falling behind
Actions:
  • Search: Filter partitions by topic name
  • Reset Offsets: Select partitions using checkboxes and click “Reset Offsets” to change offset positions
Resetting offsets can cause messages to be re-consumed or skipped. Use this feature carefully, especially in production environments.

​
Understanding Consumer States

Consumer groups can be in different states depending on their activity:

​
STABLE State

A STABLE consumer group has:
  • One or more active members
  • Partition assignments distributed among members
  • Active consumption of messages
  • Regular heartbeats from all members
This is the normal operating state for active consumers.

​
EMPTY State

An EMPTY consumer group:
  • Has no active members
  • Retains its last committed offsets
  • May have been created by a connector that stopped
  • Will transition to STABLE when consumers reconnect
EMPTY groups are common for stopped connectors or jobs. They preserve offset information for when consumption resumes.

​
Consumer Lag Monitoring

Consumer lag is a critical metric for monitoring data pipeline health: What is Consumer Lag? Consumer lag represents how far behind a consumer is from the latest message in a partition. It’s calculated as:
Consumer Lag = Log End Offset - Current Offset
Interpreting Lag:
  • Lag = 0: Consumer is caught up with the latest messages
  • Low Lag (< 1000): Consumer is processing messages in near real-time
  • High Lag (> 10,000): Consumer may be struggling to keep up
  • N/A: No offset has been committed yet, or partition has no data
Common Causes of High Lag:
  • Insufficient consumer parallelism (too few members)
  • Slow processing in the consumer application
  • Network issues between consumer and Kafka
  • Destination bottlenecks (for destination connectors)
  • Under-provisioned consumer resources

​
Resetting Consumer Offsets

Offset management allows you to reposition consumers to replay messages or skip problematic records.

​
When to Reset Offsets

Consider resetting offsets in these scenarios:
  • Replay Messages: Re-process historical data after fixing a bug
  • Skip Errors: Move past messages causing processing failures
  • Synchronize State: Reset to a known good position after an incident
  • Time-Based Recovery: Jump to messages from a specific timestamp

​
Reset Procedure

1

Stop Consumers

Ensure all consumers in the group are stopped to prevent conflicts.For Streamkap connectors, pause or stop the destination connector.
2

Navigate to Consumer Group

Open the consumer group detail page for the group you want to reset.
3

Select Partitions

In the Topic Partitions table, check the boxes for partitions you want to reset.You can select individual partitions or all partitions for a topic.
4

Click Reset Offsets

Click the Reset Offsets button that becomes enabled when partitions are selected.A dialog will appear with offset reset options.
5

Choose Reset Strategy

Select how to reset offsets:
  • Earliest: Reset to the beginning of the partition
  • Latest: Reset to the end (skip all existing messages)
  • Specific Offset: Set a custom offset position
  • Timestamp: Reset to the first offset after a given timestamp
6

Confirm and Apply

Review your selection and click Apply to reset the offsets.
7

Resume Consumers

Restart your consumers (or resume the connector) to begin consuming from the new offset positions.
Resetting to “Earliest” for large topics will cause the consumer to re-process all historical messages, which may take considerable time and could duplicate data in destinations.
Streamkap retains topic data based on your service’s retention policy (typically 7 days by default). You can only replay messages that are still within the retention window. Messages older than the retention period have been deleted and cannot be recovered.

​
Consumer Group Best Practices

  1. Monitor Lag Regularly: Set up alerts for consumer lag thresholds to catch issues early
  2. Right-Size Parallelism: Match the number of consumer members to partition count for optimal throughput
  3. Use Descriptive Group IDs: Consumer group IDs should clearly indicate their purpose
  4. Coordinate Offset Resets: Always stop consumers before resetting offsets
  5. Test Offset Changes: Test offset resets in non-production environments first
  6. Document Offset Operations: Record when and why you reset offsets for incident tracking
  7. Clean Up Unused Groups: Remove consumer groups that are no longer needed

​
Performance Tuning

If your consumer group is experiencing high lag, consider these optimizations:

​
Increase Consumer Parallelism

Add more consumer members (up to the number of partitions) to distribute the load:
  • For Streamkap destination connectors, increase the Tasks setting
  • More tasks = more parallel consumers = higher throughput
The maximum useful number of consumers equals the number of partitions. Additional consumers beyond this will remain idle.

​
Increase Topic Partitions

More partitions enable greater parallelism. See Topics for the safe partition increase procedure.

​
Optimize Consumer Configuration

For destination connectors, adjust these settings under Advanced configuration:
  • Maximum Poll Records: Increase to fetch more records per poll (e.g., 25000, 50000)
  • Fetch Min Bytes: Set minimum data to wait for before returning from fetch
  • Fetch Max Wait: Maximum time to wait for fetch min bytes

​
Troubleshooting

​
Consumer Group Not Appearing

If a consumer group is missing from the list:
  1. Check Connector Status: Verify the associated connector is running
  2. Wait for Creation: Consumer groups are created on first consumption attempt
  3. Refresh the Page: Click refresh or reload the browser
  4. Verify Service: Ensure you’re viewing the correct Streamkap service

​
High Consumer Lag

If a consumer group shows consistently high lag:
  1. Check Consumer Status: Verify all expected members are active
  2. Review Logs: Check connector or consumer logs for errors (Logs)
  3. Monitor Resources: Ensure consumers have adequate CPU and memory
  4. Check Destination: For destination connectors, verify the destination isn’t a bottleneck
  5. Increase Parallelism: Add more tasks or consumers to the group
  6. Optimize Configuration: Tune poll records and fetch settings

​
Reset Offsets Button Disabled

If the Reset Offsets button remains disabled:
  1. Select Partitions: Ensure you’ve checked at least one partition in the table
  2. Check Permissions: Verify you have the required permissions to manage offsets
  3. Verify Group State: Some operations may not be available for certain group states

​
Members Show as N/A

If partition members display as “N/A”:
  1. Check Group State: EMPTY groups have no active members
  2. Verify Consumers: Ensure consumers are running and connected
  3. Check Connectivity: Verify network connectivity between consumers and Kafka
  4. Review Logs: Check for authentication or authorization errors
