Projects

A Streamkap project is the complete infrastructure stack for your Change Data Capture (CDC) pipelines, including Apache Kafka, Apache Flink, Debezium, connectors, and supporting components. Projects are isolated environments that can represent different stages (Development, Staging, Production) or geographic regions.

​

Overview

The Projects page displays all projects in your organization with their current status:

​

Project Architecture

Each Streamkap project includes:

• Pipelines: pipelines streaming source topics and/or transformed topics to destinations
• Source Connectors: Database CDC connectors (MySQL, PostgreSQL, DynamoDB, etc.)
• Destination Connectors: Data warehouse/lake connectors (Snowflake, BigQuery, ClickHouse, etc.)
• Transforms: Data transformation engine
• Topics: Kafka topics for data streams
• Monitoring: Metrics, logs, and alerts infrastructure

​

Project States

AVAILABLE: The project is fully operational and ready to use:

• All infrastructure components are running
• Connectors can be created and managed
• Data pipelines can process events
• Marked with green badge
• Shows CURRENT if you’re actively using this project

UNAVAILABLE: The project exists but is not currently operational:

• Infrastructure is paused or stopped
• Cannot create or modify connectors
• Data pipelines are not processing
• Marked with gray badge

​

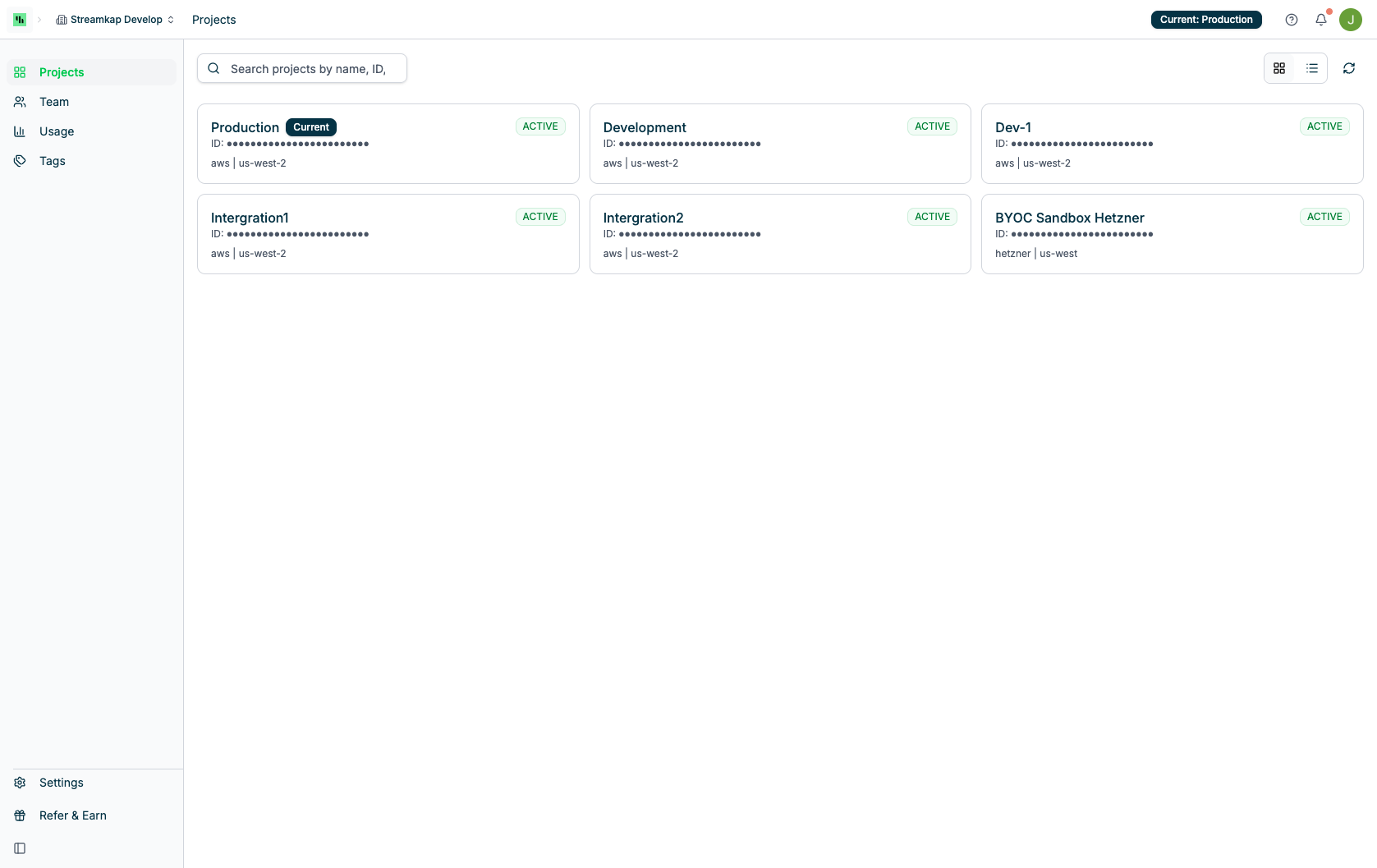

Projects List

The Projects page displays the following information for each project:

• Name: Project identifier
  • Shows CURRENT badge for the active project
• Type: Project environment type (e.g., production, development)
• Created On: Timestamp when the project was provisioned
• State: Current operational status (AVAILABLE, UNAVAILABLE)
• Cloud: Cloud provider (AWS, Azure, GCP)
• Region: Geographic region (e.g., us-west-2, us-east-1, ap-southeast-2)

​

Search

Use the search bar to filter projects by name:

• Type to filter the project list in real-time
• Useful when managing many projects across environments

​

Switching Between Projects

To switch from one project to another:

​

Project Settings

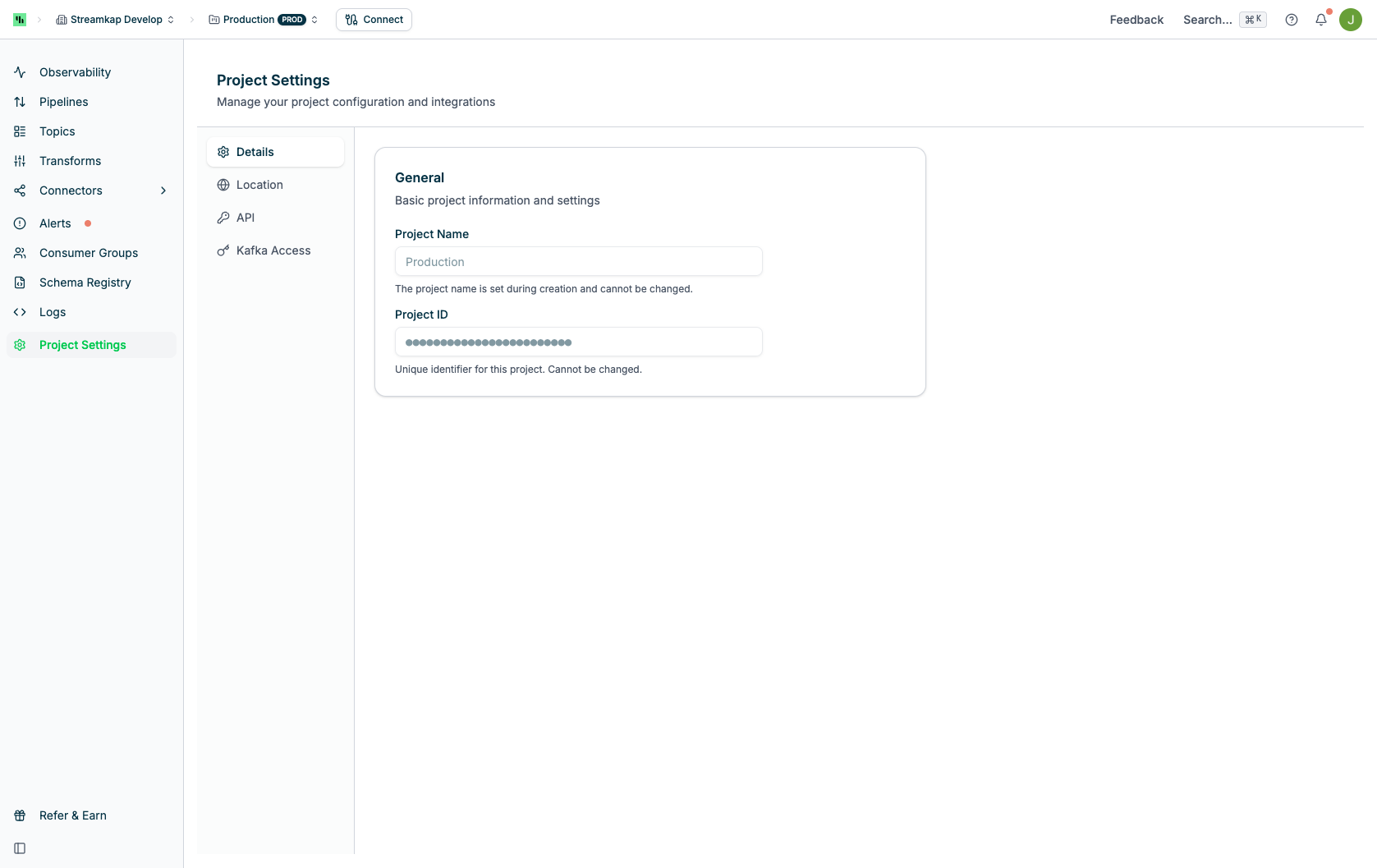

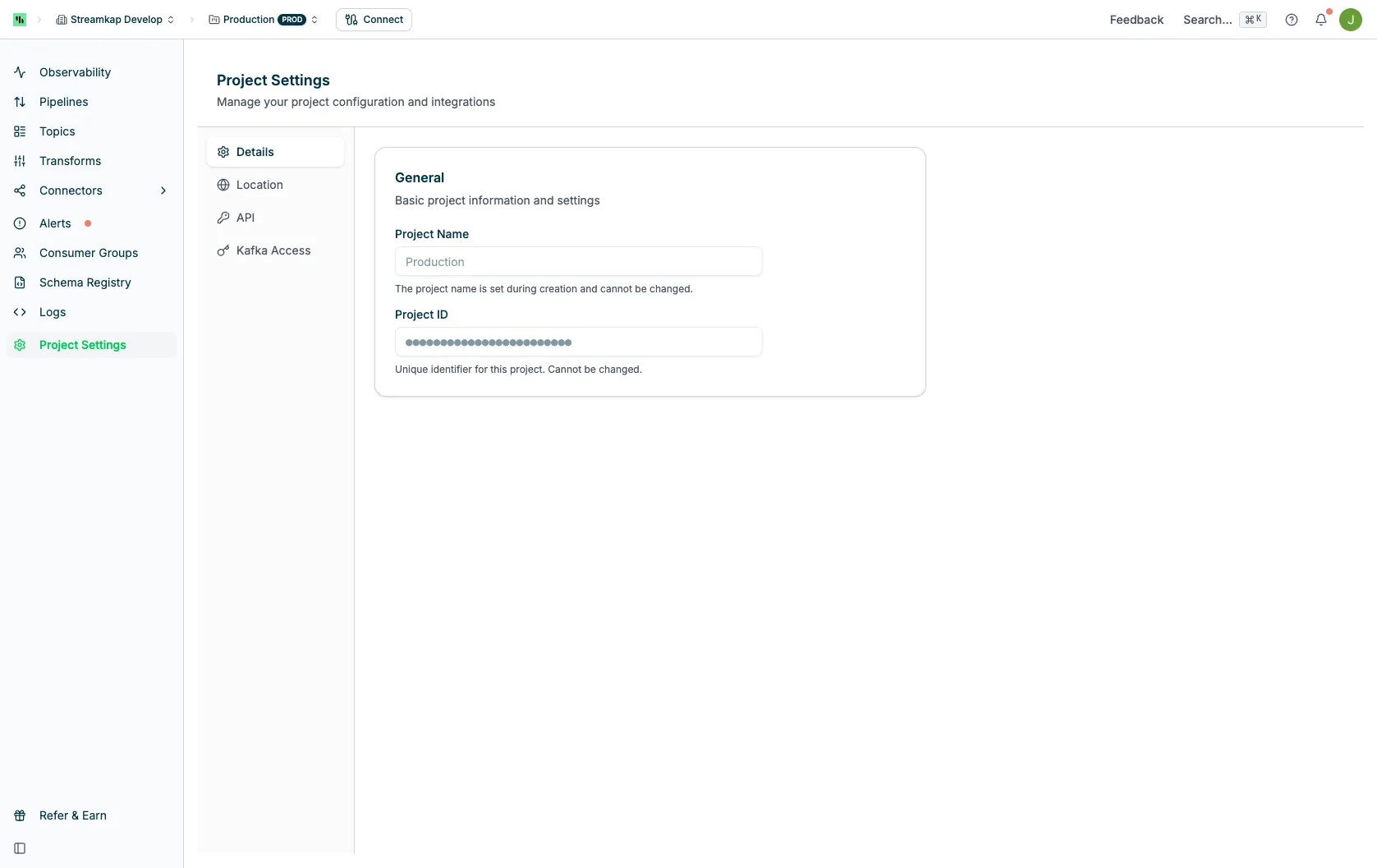

Click on a project to access its settings. The Project Settings page contains multiple tabs for managing different aspects of your project:

​

Details Tab

View and manage basic project information:

• Project Name: The display name for this project
• Project ID: Unique identifier (use “Copy” button for API calls and support tickets)
• Environment Type: Production, Development, Staging, etc.
• Created Date: When the project was provisioned

​

Location Tab

View the deployment location for this project:

• Cloud Provider: AWS, Azure, or GCP
• Region: Geographic region where the project is deployed

​

API Tab

Access API configuration for programmatic access:

• API Tokens: Navigate to create and manage API tokens for this project
• API Documentation: Links to API reference documentation

​

Kafka Access Tab

Manage Kafka connectivity for external clients:

• Kafka Brokers: Copy the broker connection string for external client connections
• Kafka Users: Manage authentication credentials for Kafka access

​

Common Use Cases

​

Environment Separation

Maintain separate projects for different environments: Development Project:

• Test schema changes and new connectors
• Experiment with transforms and pipelines
• Lower resource allocation, smaller dataset
• Region: Choose closest to development team

Staging Project:

• Mirror production configuration
• Run integration tests
• Validate deployments before production
• Same region as production for realistic testing

Production Project:

• Live data pipelines
• High availability configuration
• Optimal region for data sources
• Monitoring and alerting enabled

​

Geographic Distribution

Create projects in multiple regions for: Data Locality:

• Reduce latency by placing projects near data sources
• Comply with data residency regulations (GDPR, etc.)
• Example: EU project for European databases, US project for American databases

Disaster Recovery:

• Replicate pipelines across regions
• Failover capability for business continuity
• Active-active or active-passive configurations

Global Operations:

• Support teams in different time zones
• Reduce network latency for distributed teams
• Scale horizontally across regions

​

Creating New Projects

To request a new project:

​

Managing Project Resources

Each project has independent resources:

​

Connectors

Sources and destinations are project-specific:

• Must be recreated in each project
• Cannot be moved between projects
• Configuration can be exported/imported

​

Pipelines

Data pipelines exist within a single project:

• Define data flow from source to destination
• Cannot span multiple projects
• Must be recreated in each environment

​

Topics

Kafka topics are isolated to each project:

• Topic names can be reused across projects
• Data is not shared between projects
• Replication limited to project boundaries

​

Billing

Usage is tracked per project:

• View project-specific usage in Billing page
• Switch projects to see different usage metrics
• Projects are billed independently

​

Best Practices

1. Use Consistent Naming: Name projects clearly (e.g., “Production-US-East”, “Development-EU”)
2. Document Project Purpose: Maintain documentation of what each project is for
3. Limit Production Access: Restrict who can switch to production projects
4. Test in Non-Production First: Always validate changes in dev/staging before production
5. Monitor Project Health: Regularly check project state and resource usage
6. Copy IDs for Automation: Store project IDs in your infrastructure as code
7. Keep Kafka Brokers Secure: Treat broker connection strings as sensitive data
8. Rotate API Tokens: Regularly rotate tokens for security
9. Plan for Multi-Region: Consider geographic distribution for global operations
10. Align Regions with Data: Place projects near your data sources to reduce latency

​

Troubleshooting

​

Project Shows UNAVAILABLE

If a project is unexpectedly unavailable:

1. Check Project Status: Contact Streamkap support for infrastructure status
2. Verify Billing: Ensure account is in good standing
3. Review Recent Changes: Check if project was intentionally paused
4. Check Maintenance Window: Project may be undergoing scheduled maintenance

​

Cannot Switch Projects

If you cannot switch to another project:

1. Refresh Page: Reload the browser page
2. Clear Cache: Clear browser cache and cookies
3. Check Permissions: Verify you have access to the target project
4. Contact Support: Reach out if the issue persists

​

Kafka Brokers Not Connecting

If external clients can’t connect using the broker connection string:

1. Verify Credentials: Ensure you have valid Kafka Access credentials
2. Check Network: Verify network connectivity and firewall rules
3. Confirm Project State: Project must be AVAILABLE for connections
4. Review Security: Check SSL/TLS configuration if required
5. Use Correct Port: Verify you’re using the correct port (usually 9092 or 9093 for SSL)

​

API Token Not Working

If API tokens don’t authenticate:

1. Verify Token Scope: Ensure token is for the correct project
2. Check Expiration: Tokens may have expiration dates
3. Confirm Permissions: Token must have required permissions for the operation
4. Regenerate Token: Create a new token if issues persist

​
