NetSuite

Stream NetSuite records, standard and custom, into Kafka topics over SuiteQL, signing in with a certificate or an existing token-based integration.

The NetSuite source reads your NetSuite tables with SuiteQL and streams each selected record type to its own Kafka topic, source_<id>.netsuite.<record>.

Prerequisites

  • A NetSuite account and an administrator who can enable features, create integration records and edit roles.
  • A role for the integration (see step 6).
  • For the certificate method, OpenSSL or another tool that generates a key pair.

Choose an authentication method:

  • Certificate (OAuth 2.0 client credentials), the default: Streamkap signs each token request with your private key. Use it for any new integration.
  • Token-based authentication (OAuth 1.0a): use it only to point an existing TBA integration at Streamkap.

NetSuite Setup

1. Enable the Required Features

In Setup → Company → Enable Features, enable:

  • On the SuiteCloud subtab, REST Web Services (in SuiteTalk (Web Services)): Streamkap reads with SuiteQL over REST.
  • On the Analytics subtab, SuiteAnalytics Workbook.
  • On the SuiteCloud subtab, in Manage Authentication, OAuth 2.0 for the certificate method, or Token-Based Authentication for TBA.

2. Find Your Account ID

In Setup → Company → Company Information, copy the Account ID, for example 1234567, TSTDRV1234567, or 1234567_SB1 for a sandbox. Enter it in Streamkap exactly as shown, underscore included; Streamkap derives the API host from it.

3. Generate a Key Pair (Certificate Only)

openssl req -new -x509 -newkey rsa:4096 -sigopt rsa_padding_mode:pss -sha256 -sigopt rsa_pss_saltlen:64 \
  -days 730 -nodes -keyout netsuite-private.pem -out netsuite-public.pem -subj "/CN=streamkap"

NetSuite accepts only these keys:

  • RSA, 3072 or 4096 bits. It refuses a 2048-bit RSA key.
  • EC, on P-256, P-384 or P-521. For example, for P-256: openssl req -new -x509 -newkey ec -pkeyopt ec_paramgen_curve:prime256v1 -pkeyopt ec_param_enc:named_curve -days 730 -nodes -keyout netsuite-private.pem -out netsuite-public.pem -subj "/CN=streamkap".

A certificate is valid for at most two years: NetSuite shortens a longer one and emails administrators before it expires. When it does, repeat this step and step 5, then update the source’s Certificate ID and Private key.

4. Create the Integration Record

In Setup → Integration → Manage Integrations → New, name it (for example Streamkap), then:

  • Certificate: under OAuth 2.0, tick Client Credentials (Machine to Machine) Grant and the REST Web Services scope. Untick Authorization Code Grant and Token-Based Authentication: Streamkap uses neither. With Authorization Code Grant ticked, NetSuite validates its Redirect URI when you save, and an empty one fails with “Invalid Redirect URI”. Streamkap has no redirect URI. Save and copy the Client ID; NetSuite shows it only once.
  • TBA: tick Token-Based Authentication, save, and copy the Consumer Key and Consumer Secret, which NetSuite shows only once.

5. Map the Certificate (Certificate Only)

In Setup → Integration → Manage Authentication → OAuth 2.0 Client Credentials (M2M) Setup → Create New, pick the integration record from step 4, the role from step 6 and that role’s entity, upload netsuite-public.pem, save, and copy the Certificate ID. Creating the mapping needs an administrator, or a role with the OAuth 2.0 Authorized Applications Management permission. Each combination of integration record, role and entity needs its own mapping, and NetSuite allows up to five active certificates per combination.

6. Grant the Role Its Permissions

Streamkap only reads. It sends SuiteQL SELECT queries and reads record metadata, and never creates, updates or deletes records in NetSuite. Use a dedicated role rather than Administrator.

In Setup → Users/Roles → Manage Roles, give the integration’s role:

  • Setup → REST Web Services (Full). This permission lets the role use NetSuite’s REST API, and NetSuite’s setup grants it at Full. It gives no access to records: what the role can read or change comes from its record permissions below.
  • Setup → Log in using OAuth 2.0 Access Tokens for the certificate method, or Setup → Log in using Access Tokens for TBA.
  • Reports → SuiteAnalytics Workbook (Edit).
  • Setup → Deleted Records (View), for every record whose deletes are read from NetSuite’s deletion log. Streamkap reads the log; it deletes nothing. Without it, Test access fails those records.
  • View on each record type you stream. Streamkap needs no more: View lets a role see records but not create, edit or delete them, and only Full allows deleting.
Records (SuiteQL table) Permission
customer Lists → Customers
vendor Lists → Vendors
contact Lists → Contacts
employee Lists → Employees
partner Lists → Partners
job Lists → Jobs (Projects feature)
item, inventoryitemlocations, itemvendor Lists → Items
transaction, transactionline, transactionaccountingline, nexttransactionlinelink, previoustransactionlinelink Transactions → Find Transaction, plus each transaction type you want, such as Invoice or Sales Order
account Lists → Accounts
subsidiary Lists → Subsidiaries
department Lists → Departments
location Lists → Locations
classification Lists → Classes
currency Lists → Currency
accountingperiod Setup → Manage Accounting Periods
accountingbook Setup → Accounting Book
subscription, subscriptionline Lists → Subscriptions
subscriptionplan Lists → Subscription Plan
subscriptionchangeorder Lists → Subscription Change Orders
priceplan Lists → Price Plans
pricebook Lists → Price Books
billingschedule Lists → Billing Schedules
revenueelement Lists → Revenue Element
systemnote Lists → System Notes for Analytics and REST
deletedrecord Setup → Deleted Records
customfield Setup → Custom Entity Fields, Custom Item Fields, Custom Body Fields, Custom Column Fields and Other Custom Fields, for the kinds you want listed
customsegment Setup → Custom Segments
customrecord… Lists → Custom Record Entries, or the role’s entry on the record type’s Permissions subtab, depending on its Access Type

A permission appears only when the feature behind it is enabled. For the remaining setup lists (entitygroup, customercategory, vendorcategory, entitystatus, pricelevel, term, consolidatedexchangerate, taxtype, subscriptionterm), select them and run Test access: it names each one the role cannot read.

7. Create an Access Token (TBA Only)

In Setup → Users/Roles → Access Tokens → New, pick the integration and role, and copy the Token ID and Token Secret. NetSuite shows them only once.

Streamkap Setup

1. Create the Source

2. Connection Settings (Auth Tab)

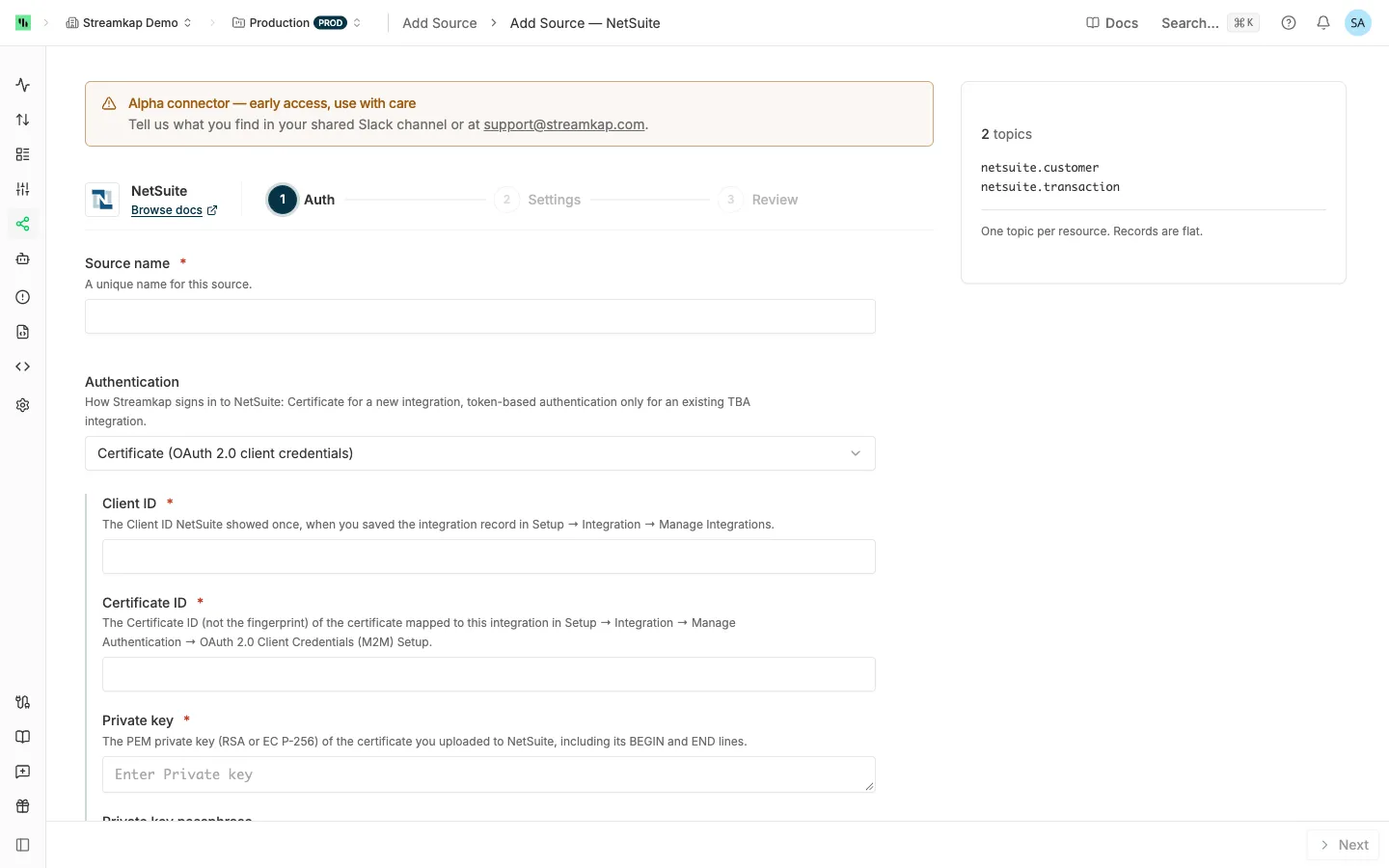

NetSuite source Auth step with the Authentication mode and its Client ID, Certificate ID and Private key fields

  • Source name: A unique name for this source, for example netsuite-prod.
  • Authentication: Certificate (OAuth 2.0 client credentials) (default) or Token-based authentication (OAuth 1.0a). The fields below follow your choice.
  • Account ID: The Account ID from step 2. A pasted account URL also works.

Certificate:

  • Client ID: From step 4.
  • Certificate ID: From step 5.
  • Private key: The contents of netsuite-private.pem in PEM format, with its BEGIN and END lines: a 3072- or 4096-bit RSA key, or an EC key on P-256, P-384 or P-521.
  • Private key passphrase (optional): Only if the key is encrypted.

Token-based authentication:

  • Consumer Key and Consumer Secret: From the integration record, step 4.
  • Token ID and Token Secret: From the access token, step 7.

Click Test connection to check the credentials, then Next.

3. Settings Tab

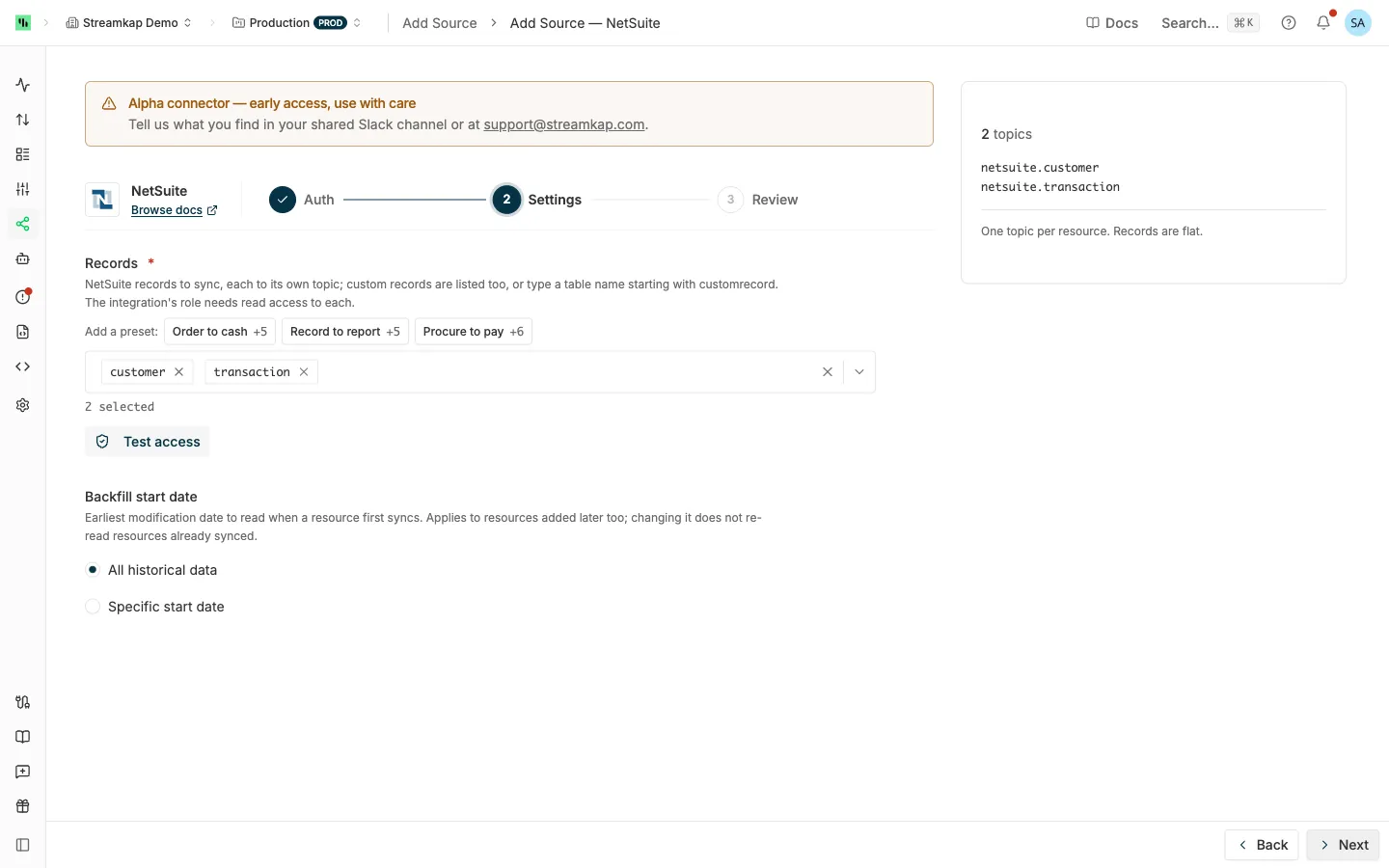

NetSuite source Settings step with the record presets, the Records list and the Backfill start date choice

  • Records: The SuiteQL tables to sync. The form starts with customer and transaction; you can select any of the others listed in step 6. Custom records found in your account are listed too, or type a table name starting with customrecord. Add a preset adds:
    • Order to cash: customer, contact, item, transaction, transactionline, term, currency.
    • Record to report: account, accountingperiod, transaction, transactionline, transactionaccountingline, currency. Add department, location and classification if your account uses them.
    • Procure to pay: vendor, vendorcategory, item, transaction, transactionline, term, currency.
  • Backfill start date: The earliest last-modified time a record’s first sync reads. See Backfill start date.

Run Test access to check each selected record with the statements its first poll sends, including the deletion-log read. See Test connection and Test access.

4. Review and Create

Check the summary and click Create. A NetSuite account backs one source per workspace, keyed on Account ID; see One source per vendor account. Then send the topics to a destination: see Send topics to a destination.

Editing the Source

  • Rotating the certificate: map a new certificate in NetSuite (step 5), then paste the new Private key and Certificate ID and save. Streaming continues from where it stopped.
  • Changing the Account ID: enter the new account’s credentials in the same save. Streamkap checks them against the new account before it saves.
  • Changing the Consumer Key or Token ID (TBA): enter its Consumer Secret or Token Secret again in the same save.

For adding and removing records, see Editing an API source.

Supported Records

Entities Items and transactions Accounting and setup
customer item account
vendor transaction subsidiary
contact transactionline department
employee transactionaccountingline location
partner nexttransactionlinelink, previoustransactionlinelink classification
job inventoryitemlocations currency
entitygroup itemvendor accountingperiod, accountingbook
customercategory, vendorcategory pricelevel consolidatedexchangerate, term, taxtype
entitystatus

Also:

  • SuiteBilling (needs the feature): subscription, subscriptionline, subscriptionplan, subscriptionterm, subscriptionchangeorder, priceplan, pricebook, billingschedule, revenueelement.
  • systemnote: NetSuite’s audit trail of field changes. It is large.
  • deletedrecord: NetSuite’s deletion log, one row per deletion.
  • customfield, customsegment: the definitions of your custom fields and segments.
  • Custom records (customrecord…), including custom segment values (customrecord_cseg_…). They track changes by their lastmodified field.

transaction holds every transaction type in one topic; the type column identifies each row.

Transaction lines and links have no unique ID, so their id joins their key columns with |. A line’s id is <transaction>|<line>, for example 301|1, and the line’s own number is kept in netsuite_id.

Behavior & Limits

Incremental Sync

Each poll reads rows modified at or after the last poll’s position, re-reading the last hour and dropping rows already sent. Every row carries an extra streamkap_lastmodified column holding the last-modified time in a sortable format; for a table without a last-modified column it is the time of the poll that last sent the row.

NetSuite renders timestamps in the integration user’s time zone (Home → Set Preferences) or the company’s, not UTC. Streamkap converts the backfill start date into that zone and reads the zone’s offset on every poll, so a time zone or daylight-saving change loses no edits. After such a change, up to an hour of rows is sent again.

Recalculated Payment and Balance Columns

NetSuite recalculates some columns without changing the last-modified time: applying a payment changes an invoice’s amount paid, amount unpaid and status, and a customer’s balances follow its transactions and the calendar. Streamkap re-checks these columns daily in blocks of about 1,000 records and re-sends every record of a block in which one changed, so they are up to a day behind and some unchanged rows arrive again:

  • transaction, for invoices, bills, credit memos, vendor credits, payments, deposits, deposit applications and refunds: foreignamountpaid, foreignamountunpaid, status, foreignpaymentamountused and foreignpaymentamountunused.
  • customer: balancesearch, overduebalancesearch, unbilledorderssearch and depositbalancesearch.

When transaction or customer is read in parts, only status is in its rows, so only status is re-checked. A column the role cannot read is left out with a warning. Any other value NetSuite recalculates without an edit is not re-read until the row is edited.

Tables Without a Last-Modified Column

Some tables have no last-modified column, and the small setup lists (customfield, customsegment, customercategory, vendorcategory, entitystatus, accountingbook, consolidatedexchangerate, taxtype, inventoryitemlocations, itemvendor) are always read this way: the whole table is read every poll, only new and changed rows are sent, and a row that disappears is deleted. The backfill start date does not apply.

Records With More Than 100 Fields

SuiteQL can return no rows for a query that selects more than 100 fields, which transaction, customer and item can reach with custom fields. Streamkap detects this and reads the record in parts, naming the fields from NetSuite’s REST record catalog, so a field missing from that catalog is not included. Test access fails a wide custom record that has no catalog entry.

Values Arrive as Text

SuiteQL returns numbers as strings ("101") and booleans as "T" or "F". Streamkap passes them through, so destination columns created from these rows are strings. Cast them downstream.

Deletes

Deletes are read from NetSuite’s deletion log (deletedrecord), and each candidate is checked against the live table first, so a record deleted and recreated under the same ID is never removed. A daily reconciliation walks each table’s live IDs and deletes any that have disappeared, which catches deletions that aged out of the log, for example while the source was paused. NetSuite does not document how long it keeps deletions, so the source never shows a delete-coverage warning.

  • transactionline, transactionaccountingline and the link tables have no deletion log: only the daily reconciliation deletes them.
  • Custom records are matched in the log by script ID.
  • systemnote and deletedrecord are logs and are never deleted.

See Deletes for how a delete reaches your destination.

Concurrency

NetSuite limits how many requests an account runs at once, by service tier plus 10 per SuiteCloud Plus licence, and every integration on the account shares that limit. A source paces its requests to leave room for your other integrations. When NetSuite answers that the account is at its limit, Streamkap backs off and retries, and failing that tries again at the next poll without pausing any record. A large first sync arrives over several polls.

Troubleshooting

"NetSuite rejected the client assertion"

The Client ID, Certificate ID or private key does not match what NetSuite has. Check the Certificate ID on the OAuth 2.0 Client Credentials (M2M) Setup screen, and that the certificate has not expired or been replaced.

"The private key could not be read"

Paste the whole key, including the BEGIN and END lines, and its passphrase if it is encrypted.

Test access fails a record

The message names the reason: the role has no permission for the record, or for the deletion log it reads deletes from; the record does not exist; or it has more than 100 fields and no REST record catalog entry. Grant the permission in step 6, or deselect the record.

One record is paused while the others stream

NetSuite refused to read it, usually because the role lost access to it. Grant the permission again; Streamkap retries the record on its own.

A record deleted in NetSuite is still in my destination

A delete missed by the deletion-log read surfaces at the daily reconciliation, within about a day. Transaction lines are deleted only by reconciliation. One reconciliation pass names up to about 1,600 deletions per table. Past that it names only some, and the next pass starts a fresh comparison, so the rest are deleted downstream only if the deletion log has them. Transaction lines have no log, so some lines of a bulk deletion can stay in your destination.

  • API sources - how API sources work, Test access, and delivering topics with Send to destination.
  • Connector status - what Broken and Throttled mean for an API source.
